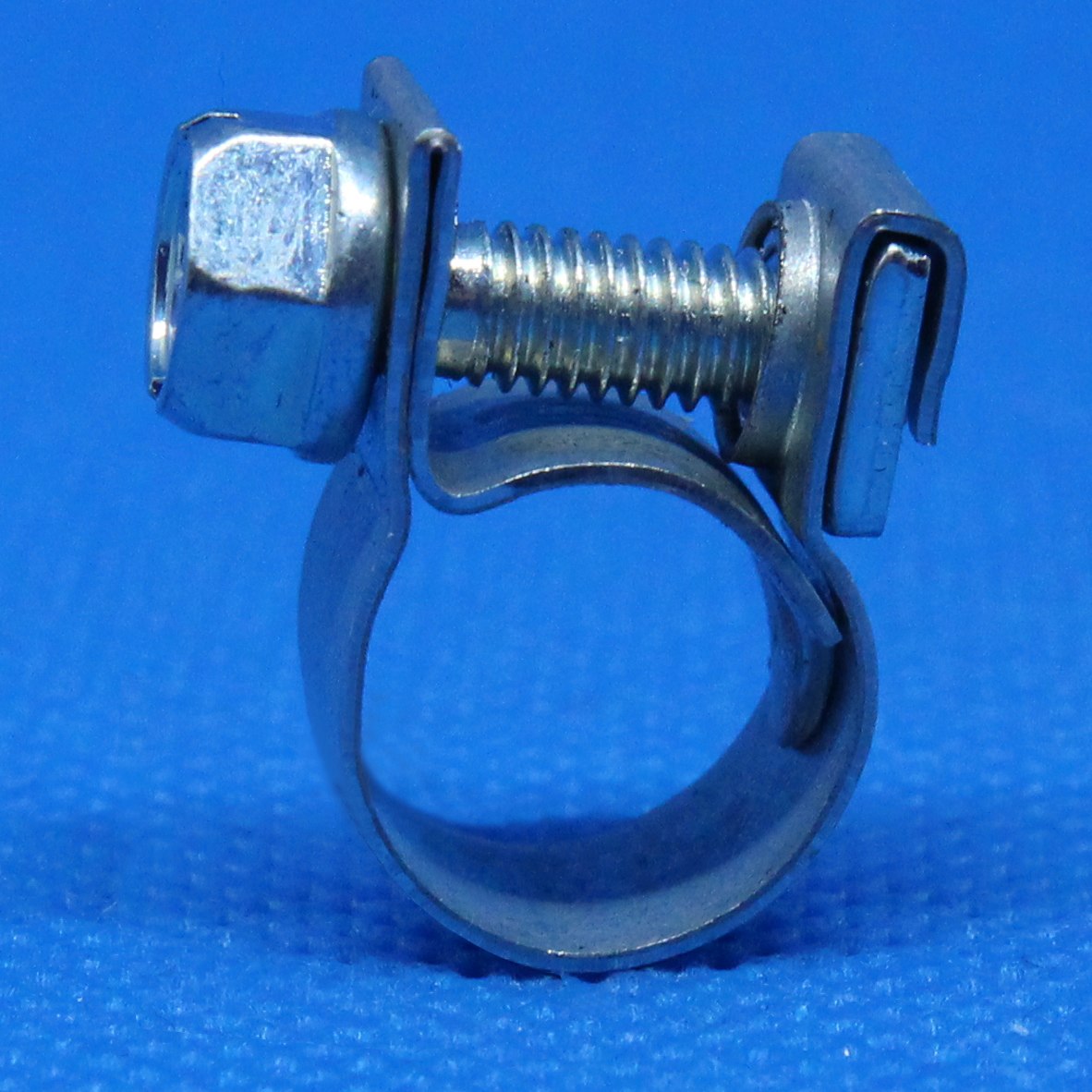

A nut-and-bolt hose clamp with rolled band edges that is ideally suited for small, thin-walled hoses.
- Rolled-up band edges with profiled band tongue for added strength
- Socket or Screwdriver Adjustable
- SAE Standard J1508 Type FE
- 9mm Band in Plated Steel
- Clamp Secured Nut
- 304 Stainless Steel Phillips Hex Head Screw
- Brand PN:
- 22014
- Global PN:
- 0810 3002 014
- Inches min:
- 17/32
- Inches max:
- 19/32
- mm Min:
- 13.5
- mm Max:
- 15
- Screw Type:
- 304 Stainless Steel Phillips Hex Head Screw
- Screw Material:
- 304 SS
- Band Material:
- 304 SS
- Band Width Inches:
- 3/8
- Band Width mm:
- 9
