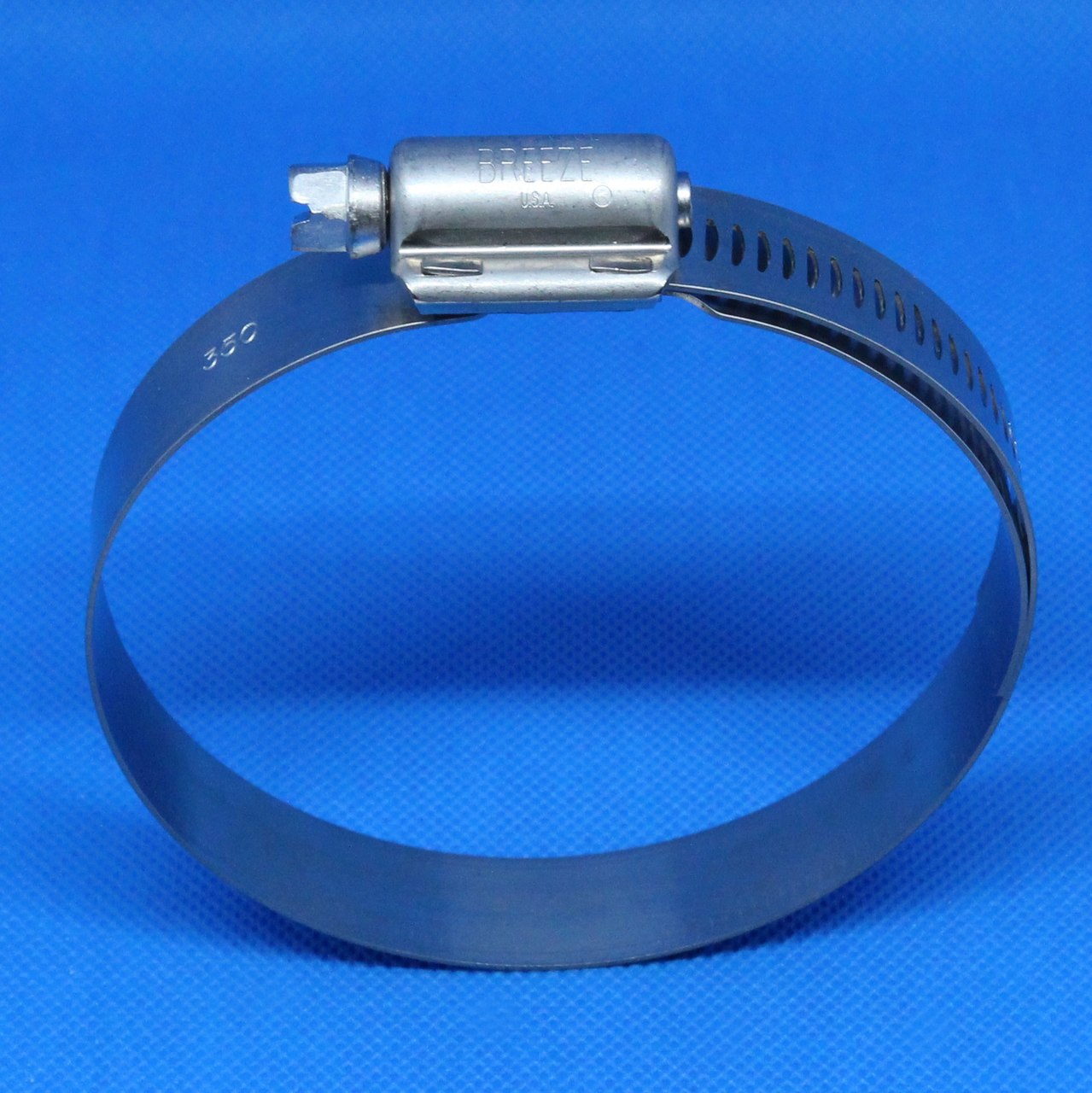

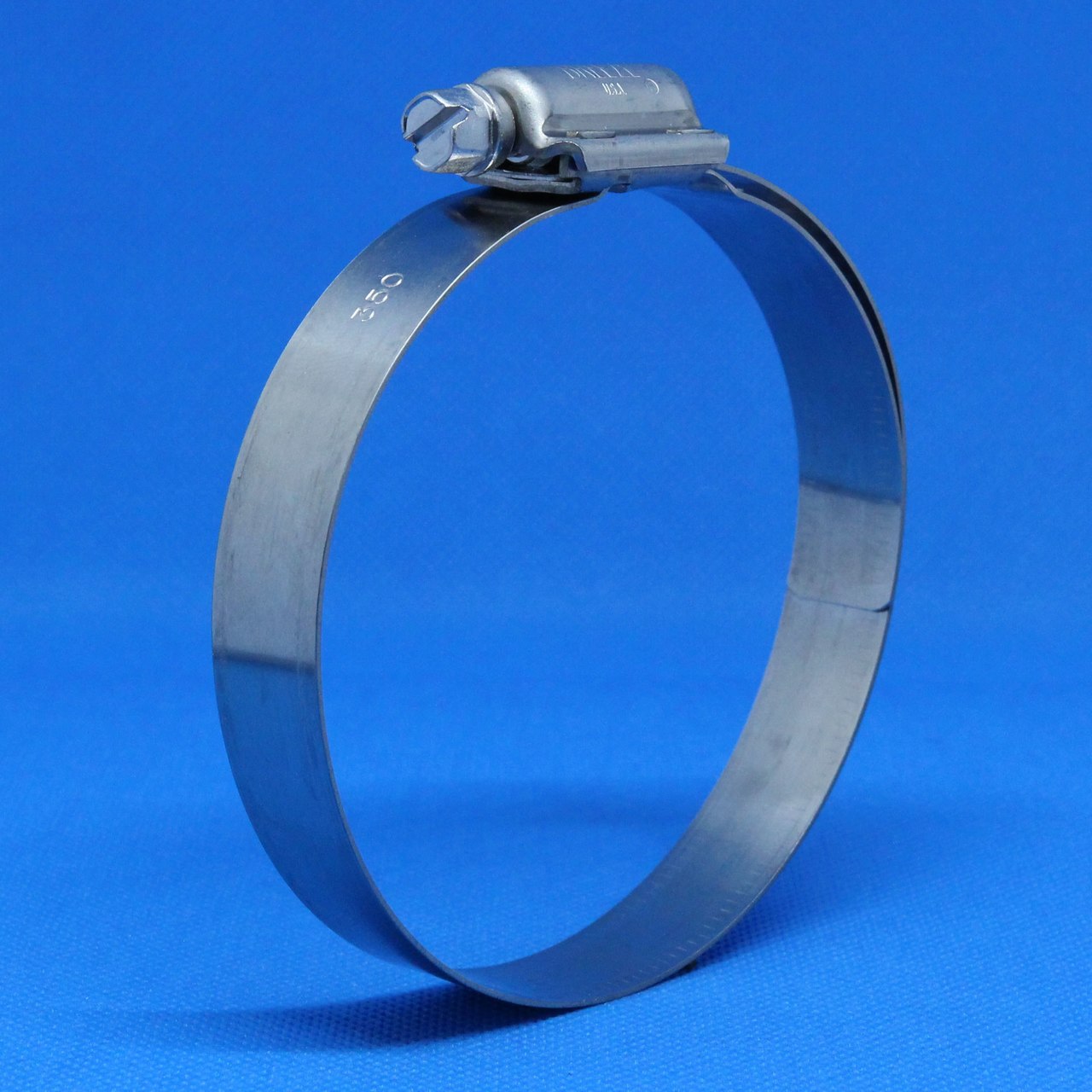

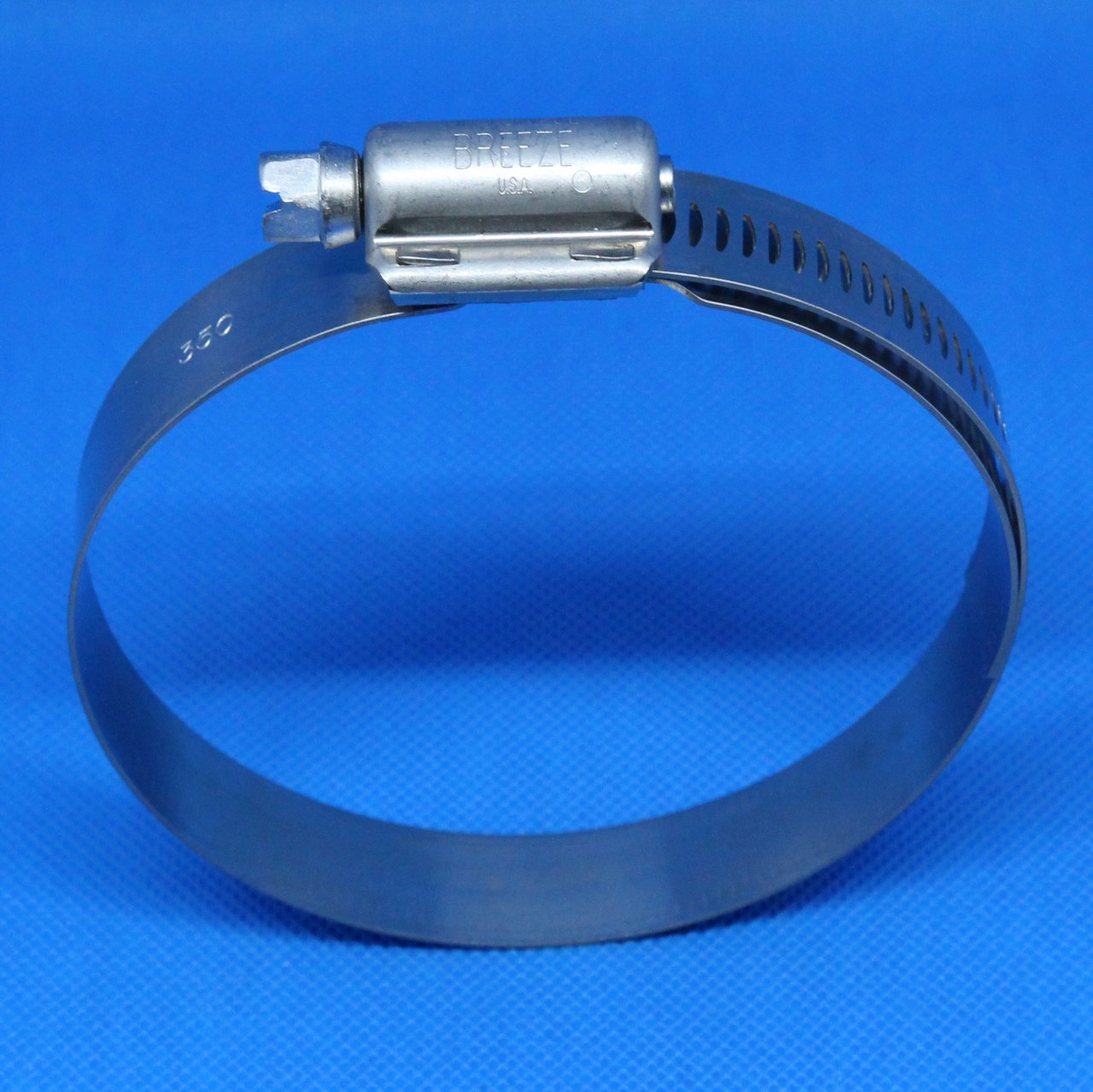

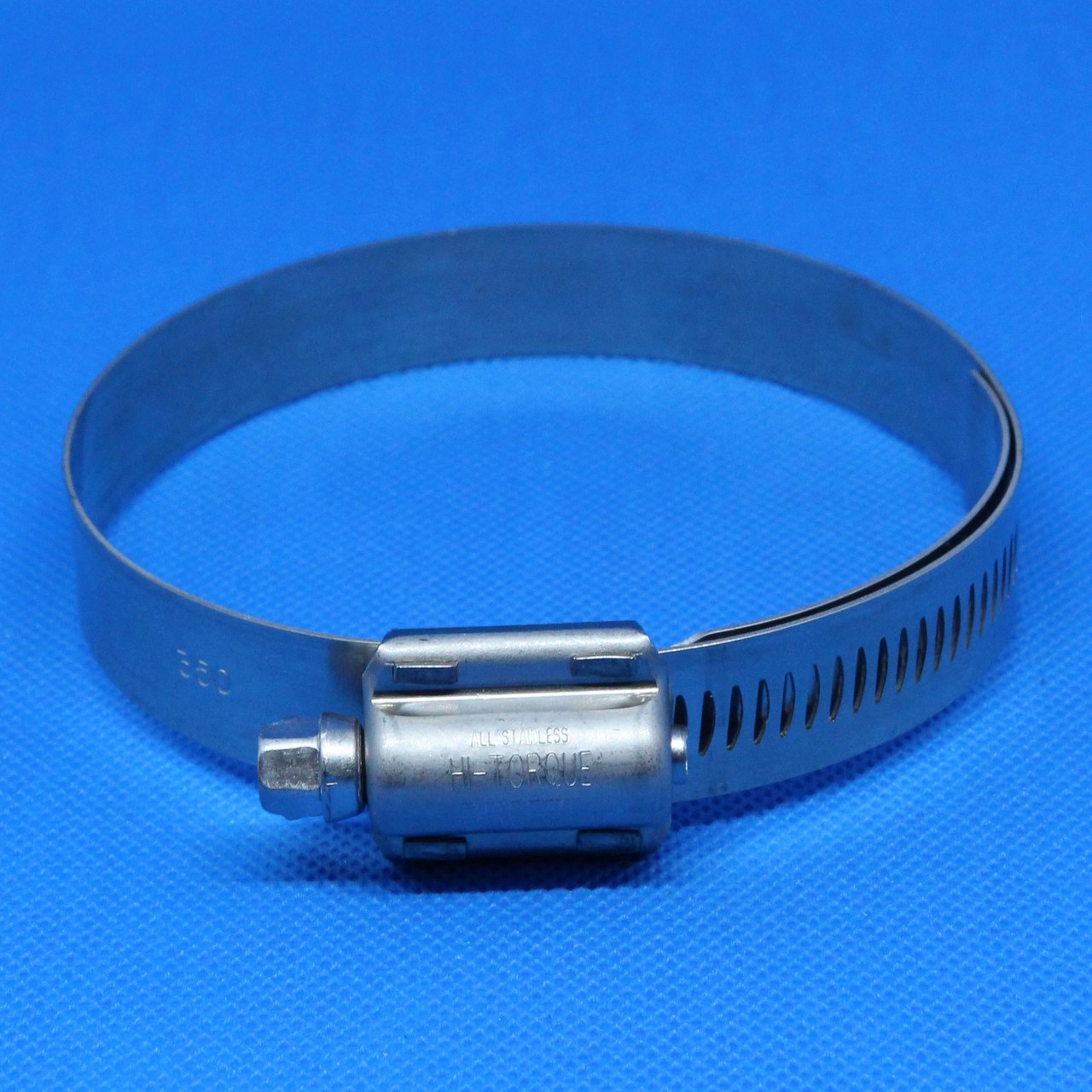

HTM L HI-TORQUE W/LINER - HTM 650 L

Call for pricing 908-298-8600

The Hi-Torque is the world's strongest worm-gear clamp and features all-stainless-steel construction.Withstands more than 3 times the SAE torque requirements for Type F worm-gear clamps.

  • Incredible torquing drive, sealing pressure and vibration resistance
  • Eight screw-threads are engaged in the band simultaneously
  • SAE Standard J1508 Type HD
  • 300-Series SS 5/8" Band with liner
  • 300-Series SS Two-Piece Housing
  • 5/16" 410 Stainless Steel Hex Screw
SAE:
662
Brand PN:
HTM 650 L
Global PN:
0156 0021 157
Inches min:
5 3/4
Inches Max:
6 5/8
mm Min:
146
mm Max:
168
Screw Type:
5/16" 410 Stainless Steel Hex Screw
Screw Material:
410 SS
Bandwidth:
5/8"
Band Material:
300 SS
Torque Range:
90 in-lbs
