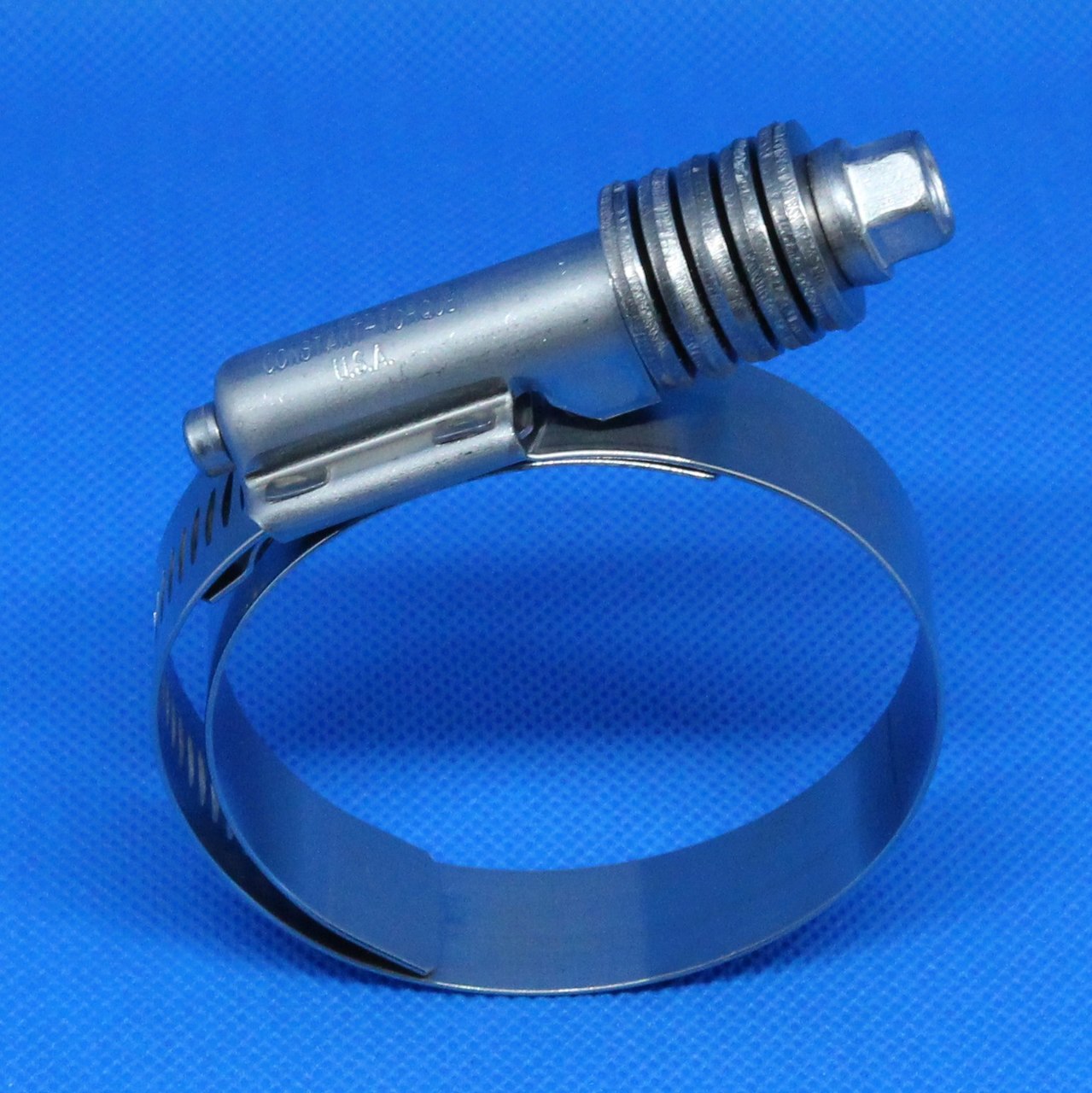

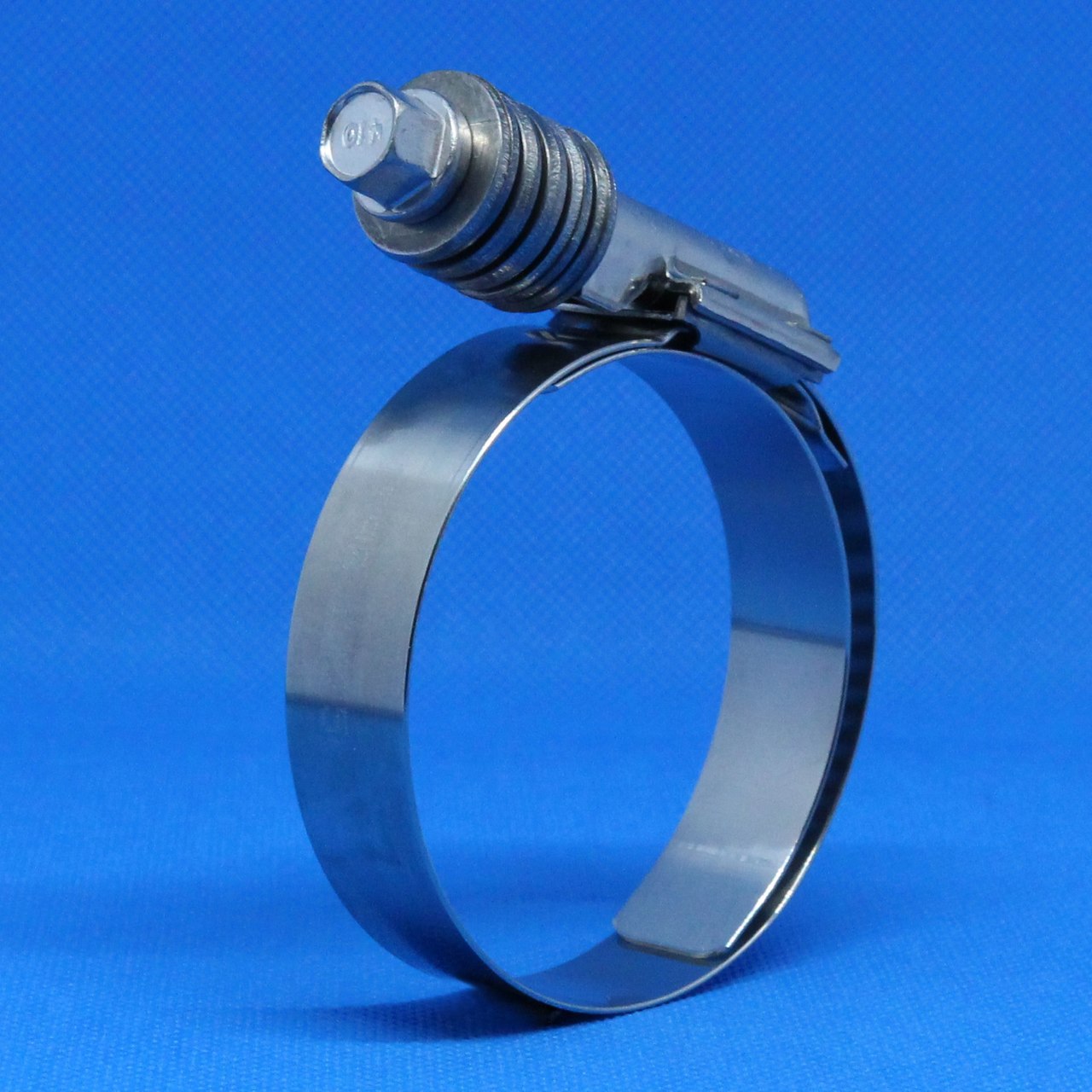

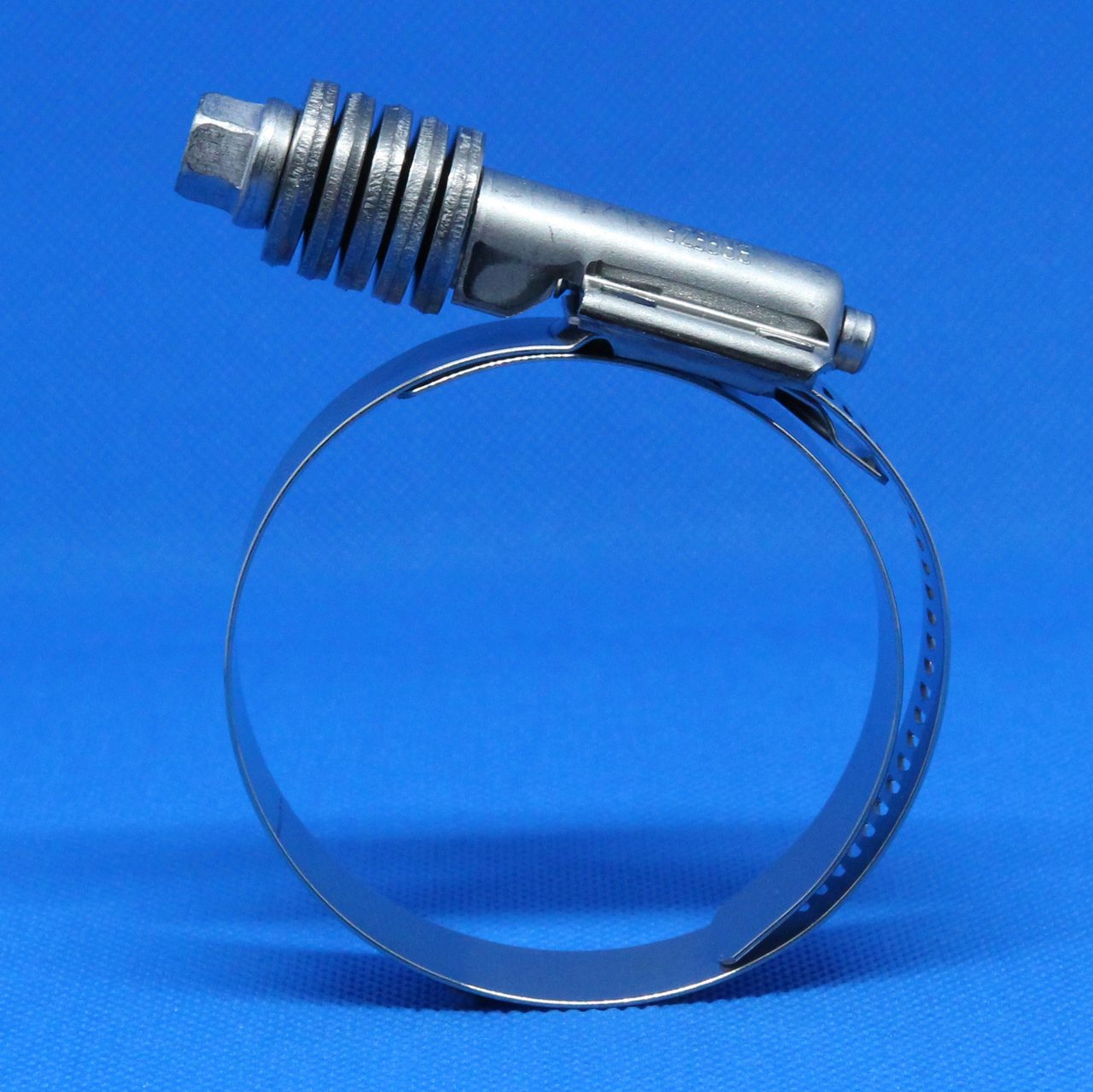

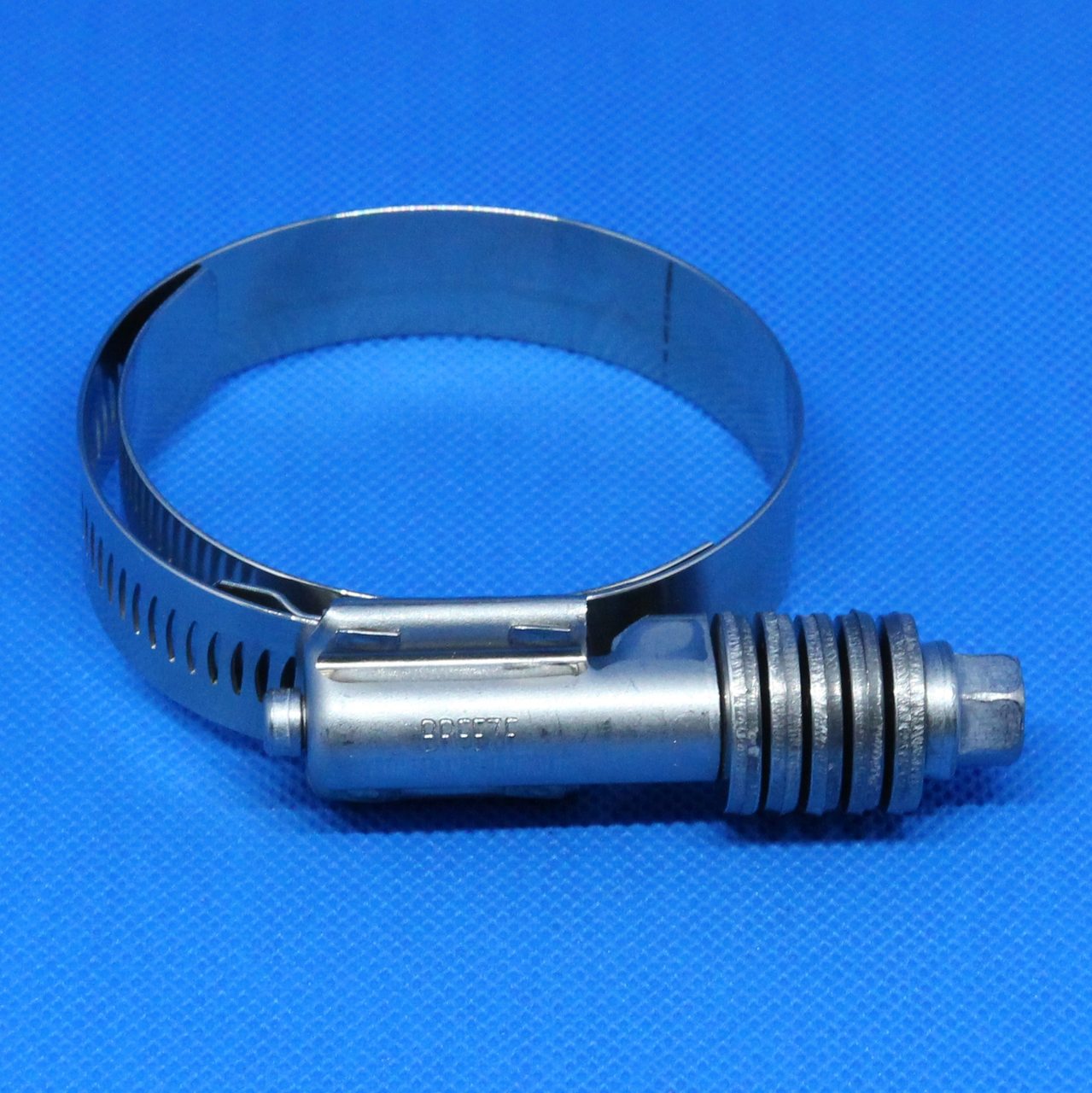

A worm-drive hose clamp that automatically increases or decreases diameter due to changes in temperature.
- Custom designed stainless steel Belleville washer
- Inner liner which protects all types of hoses from damage
- Increased sealing reliability across a wide temperature range
- SAE Standard J1508 Type SLF & SLHD
- Ten Stainless Steel Belleville Washers
- 300-Series SS 5/8" Band
- 3/8" Plated Hex Screw
- SAE:
- 812
- Brand PN:
- CT 800 L
- Global PN:
- 0156 0003 195
- Inches min:
- 7 1/4
- Inches Max:
- 8 1/8
- mm Min:
- 184
- mm Max:
- 206
- Screw Type:
- 3/8" Plated Hex Screw
- Screw Material:
- Plated
- Bandwidth:
- 5/8"
- Band Material:
- 300 SS
- Torque Range:
- 90 in-lbs
