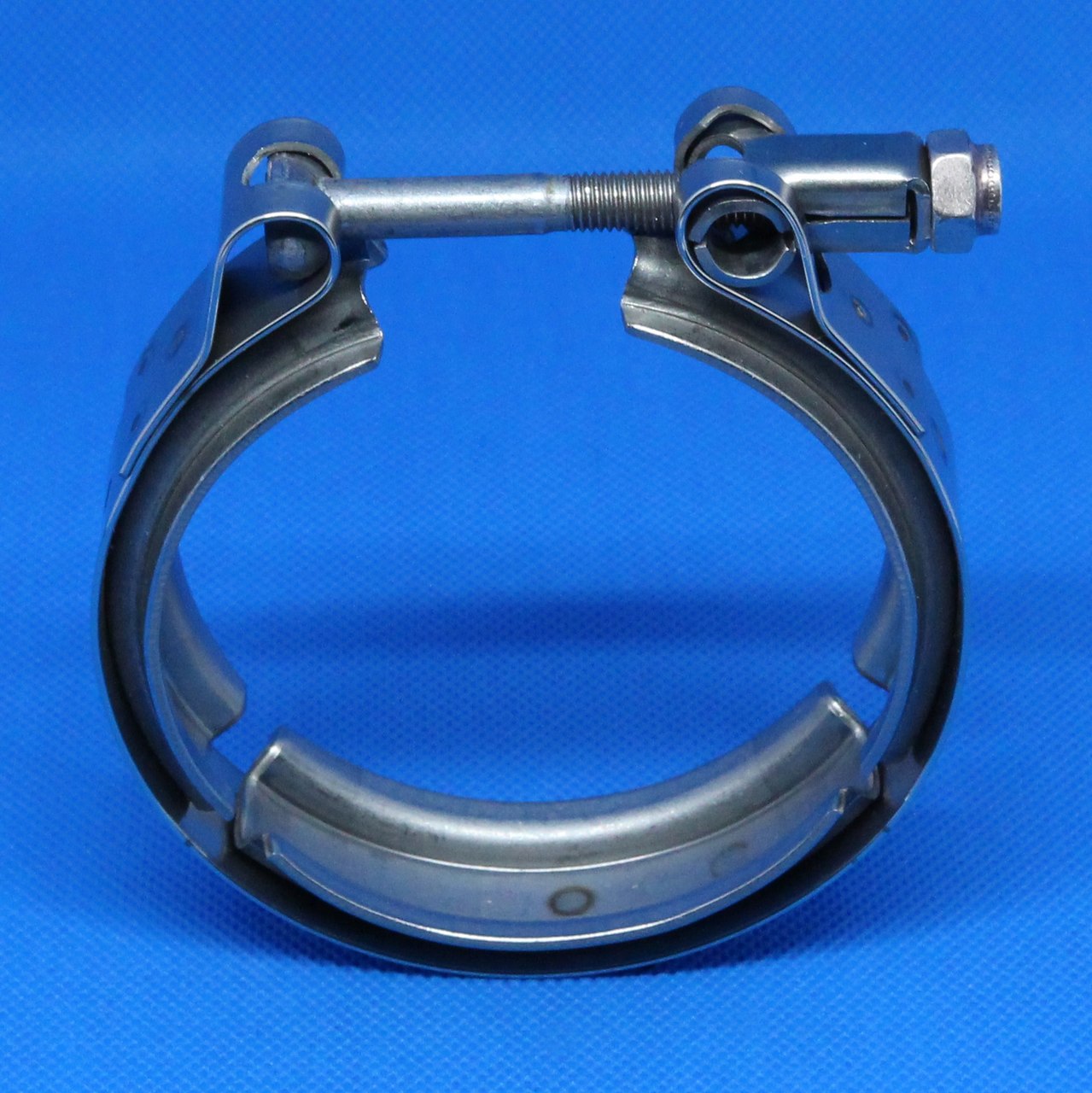

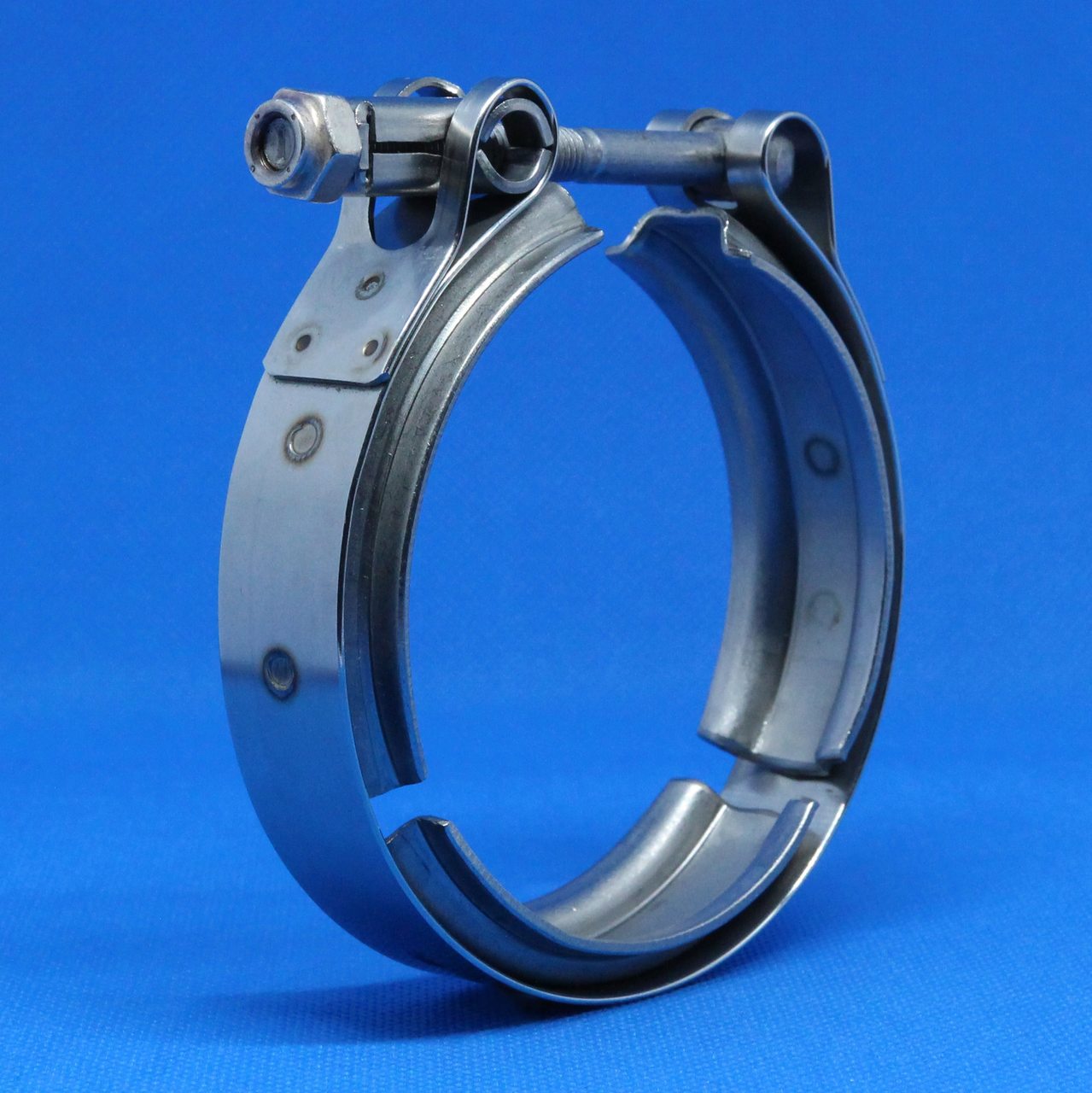

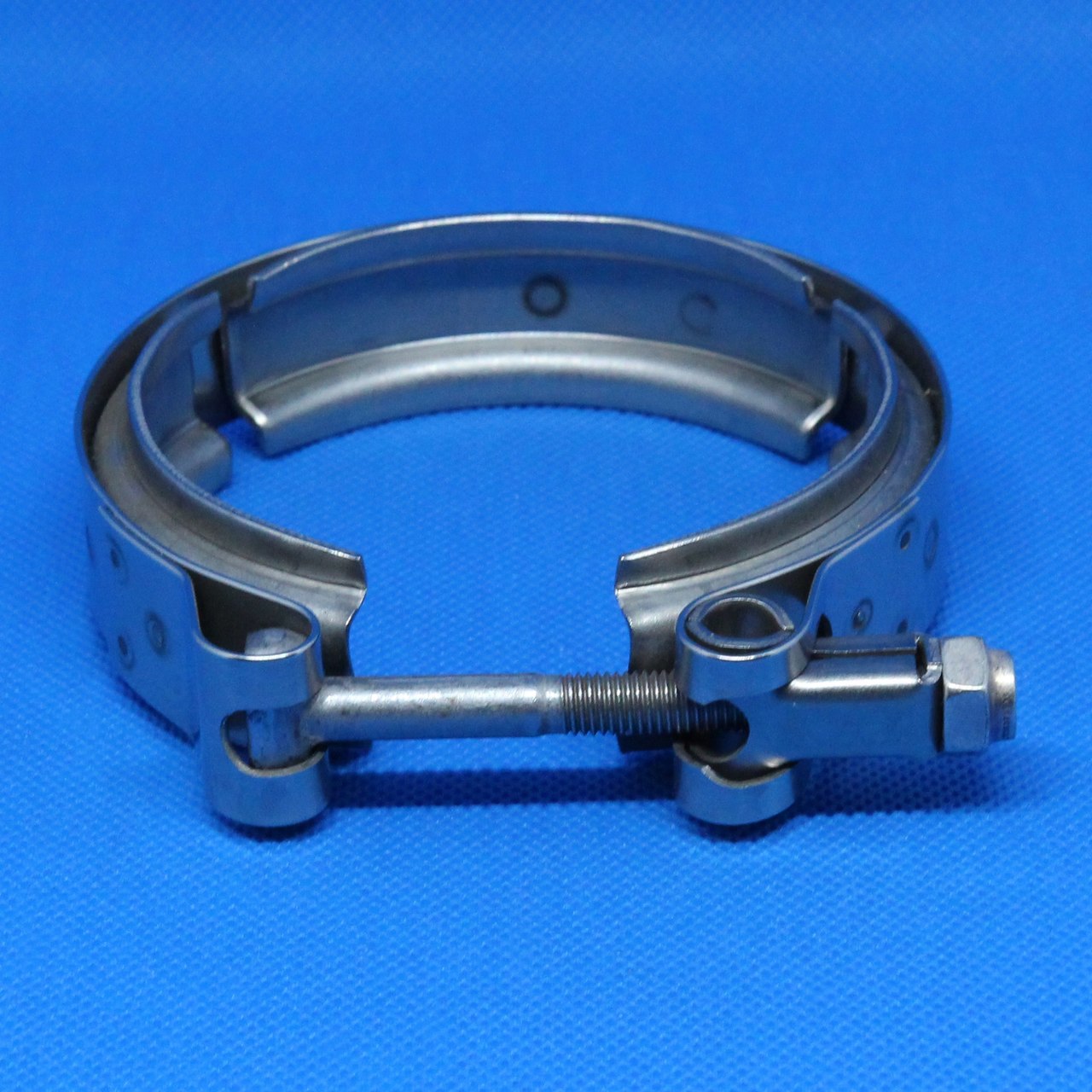

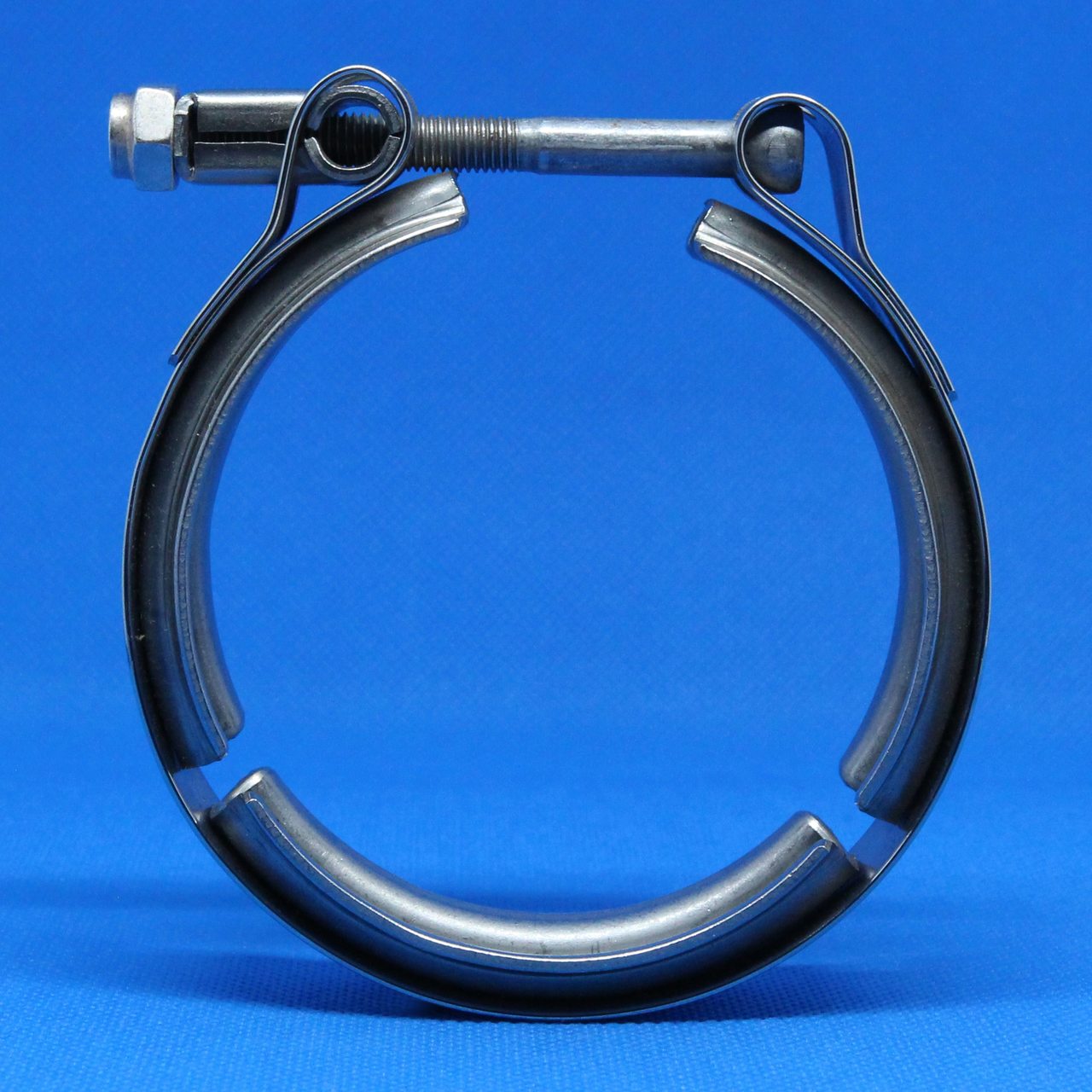

V-Band clamps provide fast, secure high-strength coupling to connect flanged joints.
- 40° Insert angle – Other insert angles also available
- Welded band construction with rotating angle
- 7/8" 300-Series SS Band
- 300-Series SS V- Insert
- 400-Series SS Bolt & Locknut
- Brand PN:
- VT10510
- Global PN:
- 0365 1681 295
- Screw Type:
- 400-Series SS Bolt
- Screw Material:
- 400 SS
- Bandwidth:
- 7/8"
- Band Material:
- 300 SS
- Torque Range:
- 60 in-lbs
- Nominal Diameter (0) Inches:
- 5.1
- Nominal Diameter (0) mm:
- 129.5
- Insert Thickness (A) Inches:
- 0.05
- Insert Thickness (A) mm:
- 1.27
- Insert Apex Width (B) Inches:
- 0.262
- Insert Apex Width (B) mm:
- 6.65
- Insert Depth (C) Inches:
- 0.141
- Insert Depth (C) mm:
- 3.58
- Band Thickness (D) inches:
- 0.035
- Band Thickness (D) mm:
- 0.89
- Band Width (E) Inches:
- 0.75
- Band Width (E) mm:
- 19.05
