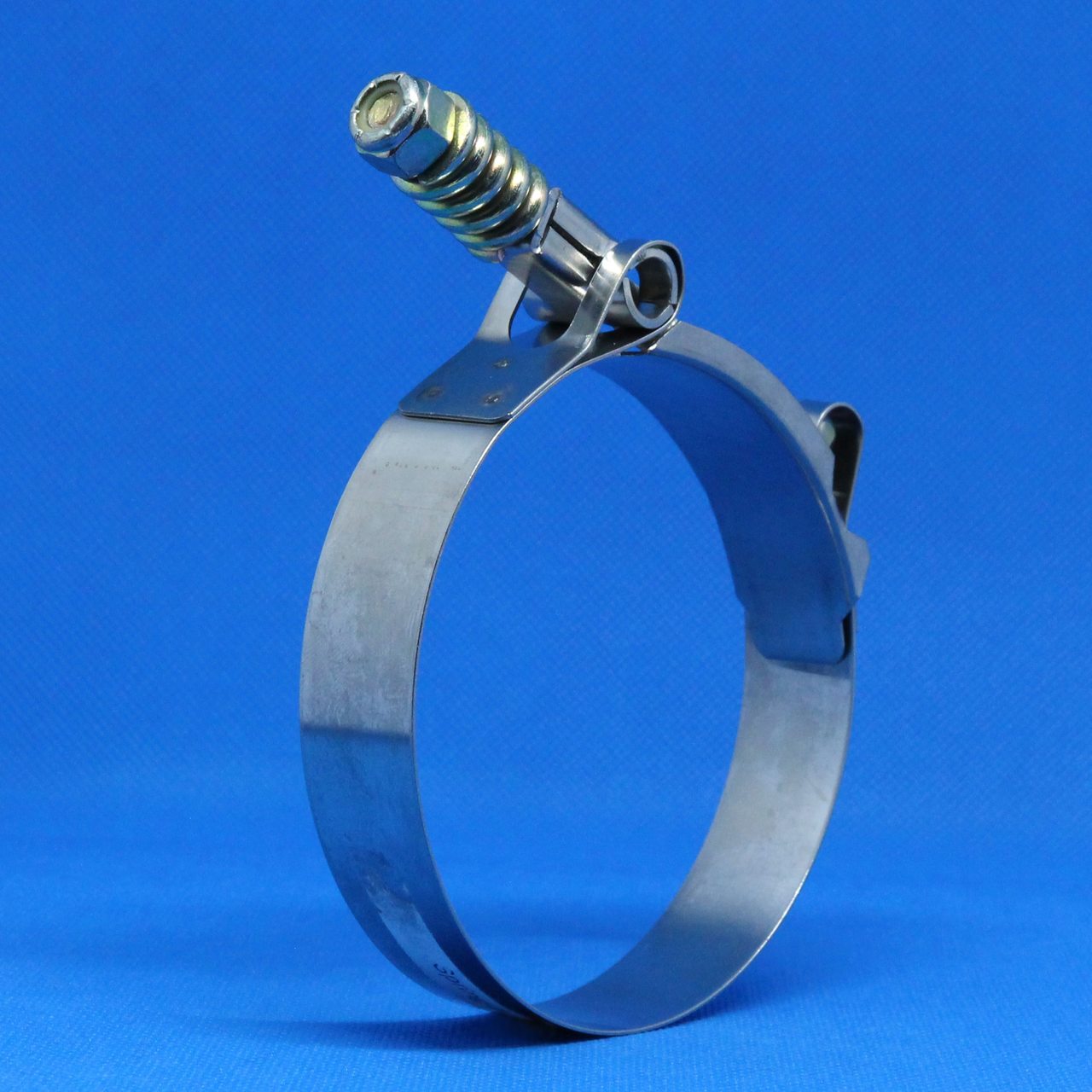

A constant-tension clamp with a spring designed for a variety of automotive, industrial, and marine applications. Spring increases dynamic clamping range and provides steady band tension under fluctuating conditions.
- Corrosion-resistant stainless steel band, trunnion & bridge
- Floating Bridge with Standard Spring
- SAE standard J1508 Type SLTB
- 300-Series SS 3/4" Band
- 1/4" – 28 Plated bolt, spring & nylon insert locknut
- SAE:
- 114
- Brand PN:
- B9226-0444 B
- Global PN:
- 0363 0006 117
- Inches min:
- 4 7/16
- Inches Max:
- 4 3/4
- mm Min:
- 113
- mm Max:
- 121
- Screw Type:
- 1/4"- 28 Plated Bolt
- Screw Material:
- Plated
- Bandwidth:
- 3/4"
- Band Material:
- 300 SS
- Torque Range:
- 60 in-lbs
