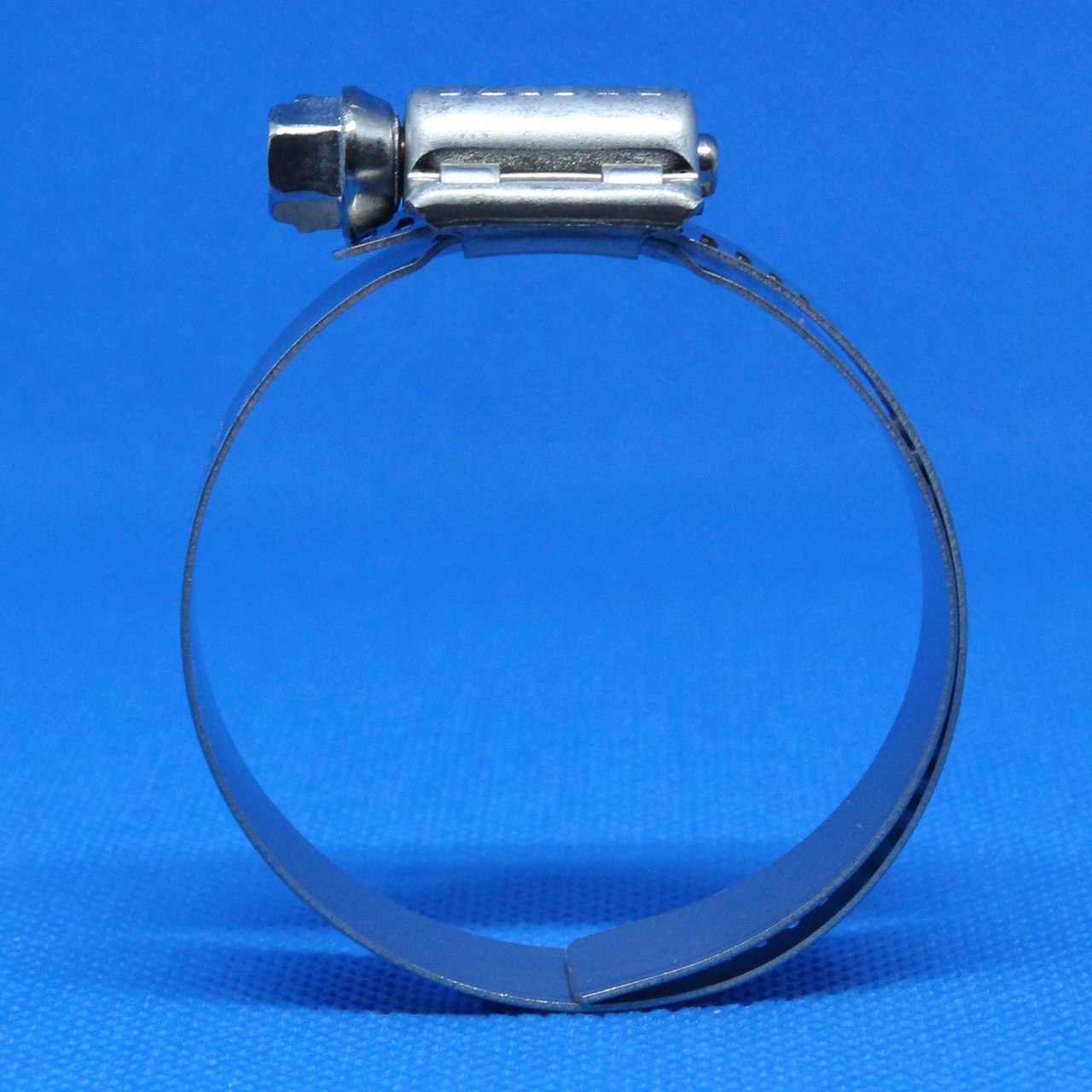

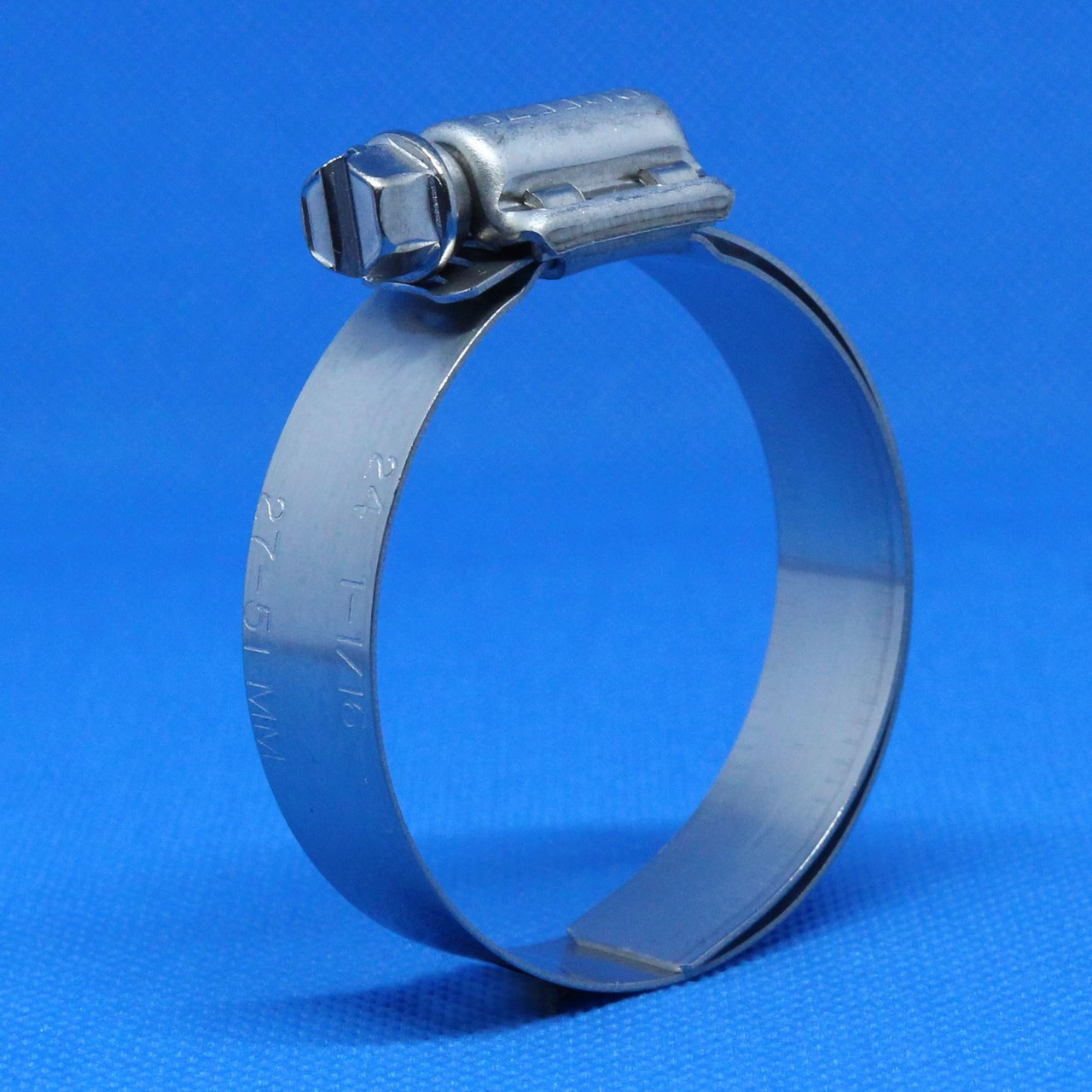

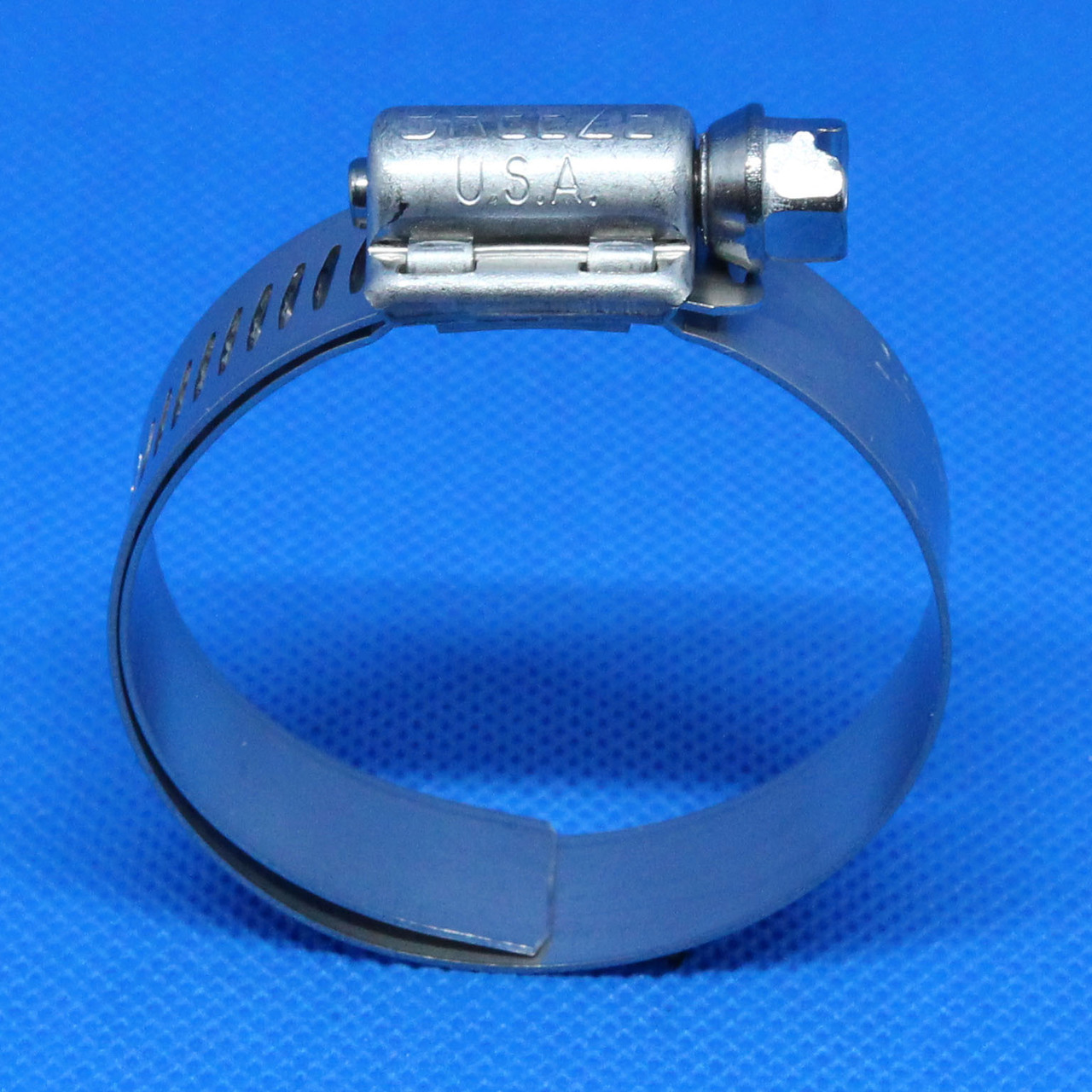

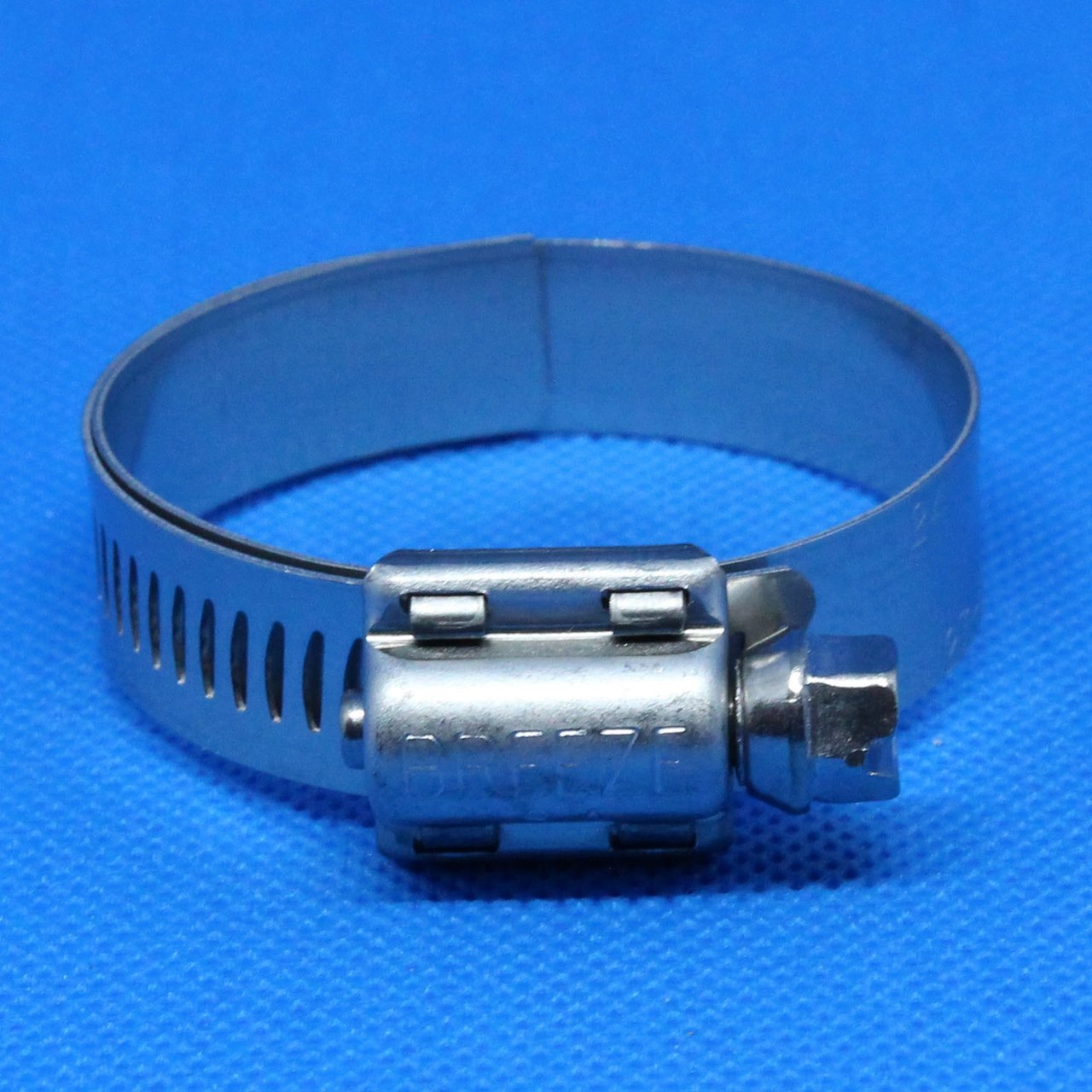

Liner clamps provide maximum protection to soft hoses while providing a true concentric seal.
- 300-Series SS 1/2" Lined Band/Larger Sizes have 9/16" Band
- High-strength Quadra-Lock housing construction
- SAE Standard J1508 Type F
- 300-Series SS Two-Piece Housing
- 5/16" 410 Stainless Steel Hex Screw
- SAE:
- 6
- Brand PN:
- 9406H
- Global PN:
- 0361 0202 016
- Inches min:
- 7/16
- Inches Max:
- 25/32
- mm Min:
- 11
- mm Max:
- 20
- Screw Type:
- 5/16" 410 Stainless Steel Hex Screw
- Screw Material:
- 410 SS
- Bandwidth:
- 1/2"
- Band Material:
- 300 SS
- Torque Range:
- 30-45 in-lbs
