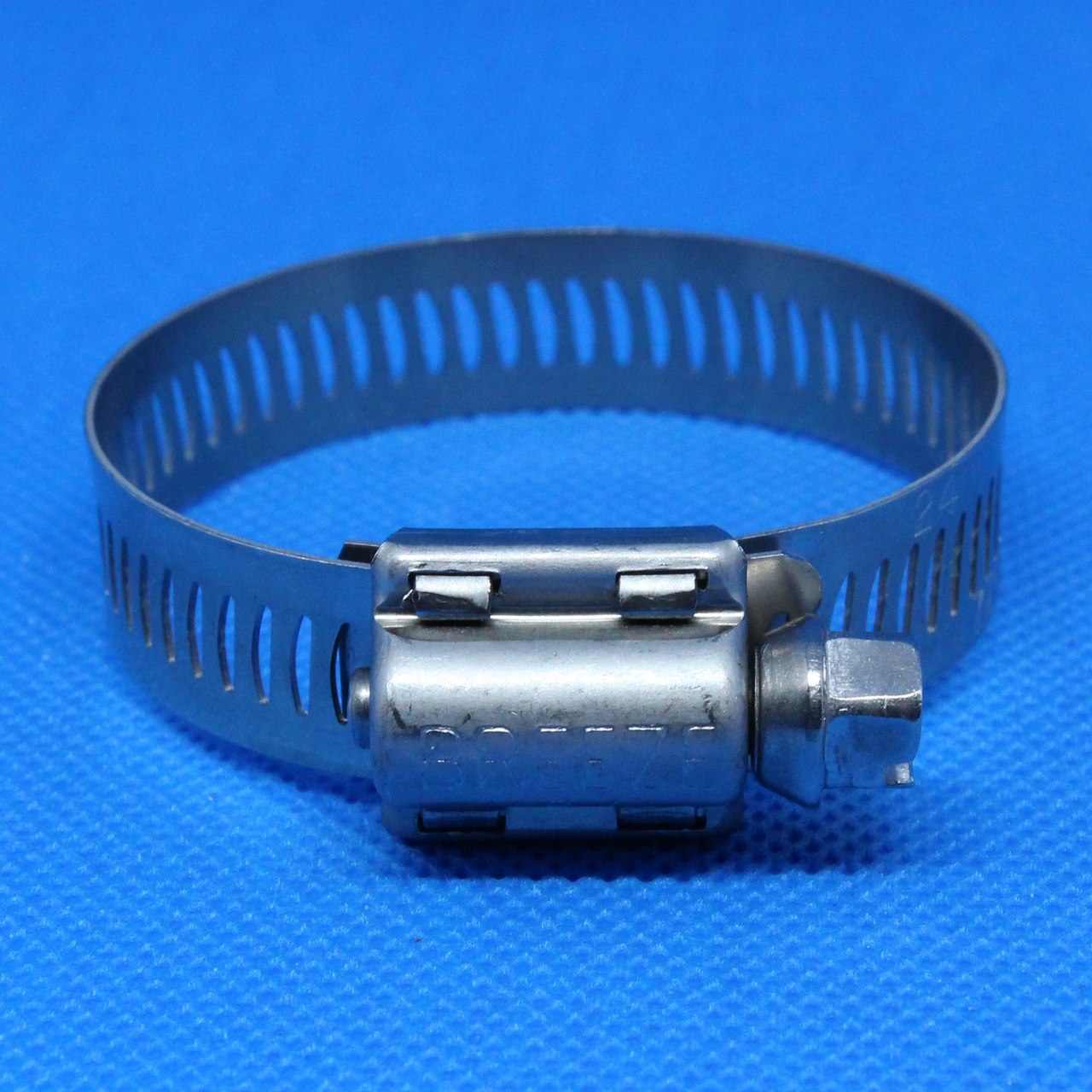

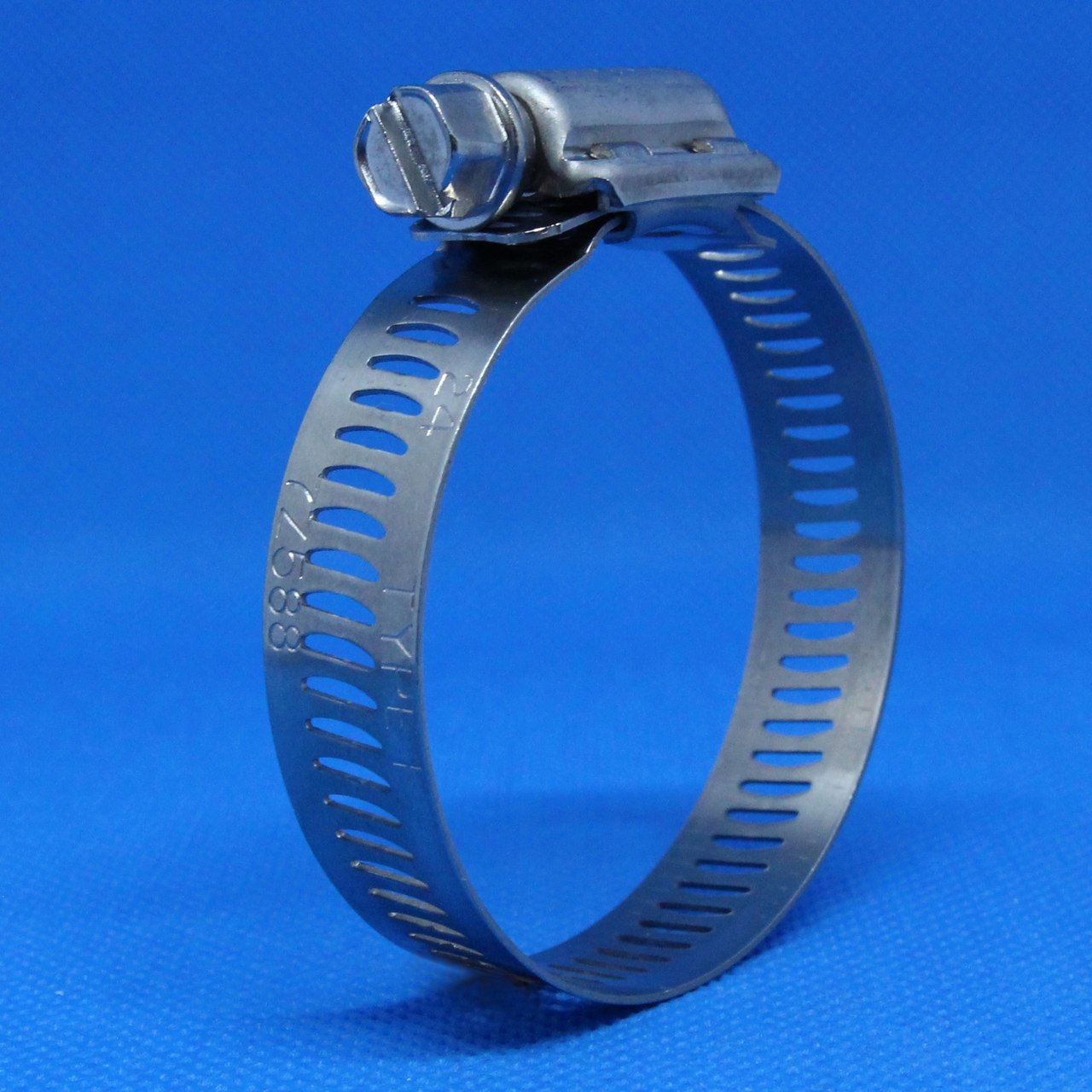

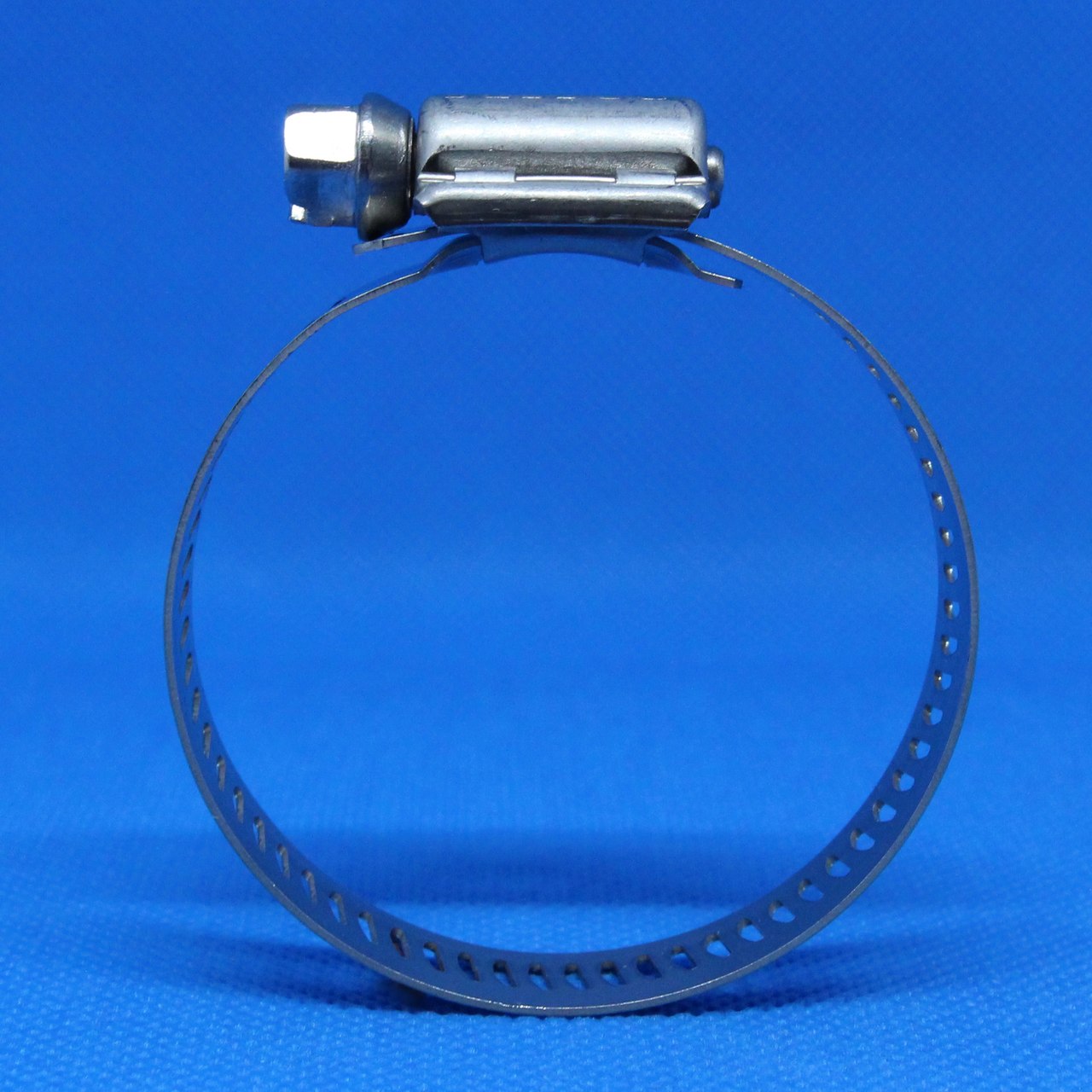

A general purpose automotive and industrial worm-drive hose clamp with arcial perforations for added strength.
- High strength Quadra-Lock housing construction
- Exceeds SAE Standard J1508 Type F
- 300-Series SS 1/2" Band with Arcial Perforations
- 300-Series SS Two-Piece Housing
- 5/16" Plated Hex Screw
- SAE:
- 188
- Brand PN:
- 62188
- Global PN:
- 0360 1053 029
- Inches min:
- 9 3/8
- Inches Max:
- 12 1/4
- mm Min:
- 238
- mm Max:
- 273
- Screw Type:
- 5/16" Plated Hex Screw
- Screw Material:
- Plated
- Bandwidth:
- 9/16"
- Band Material:
- 300 SS
- Torque Range:
- 25-37 in-lbs
