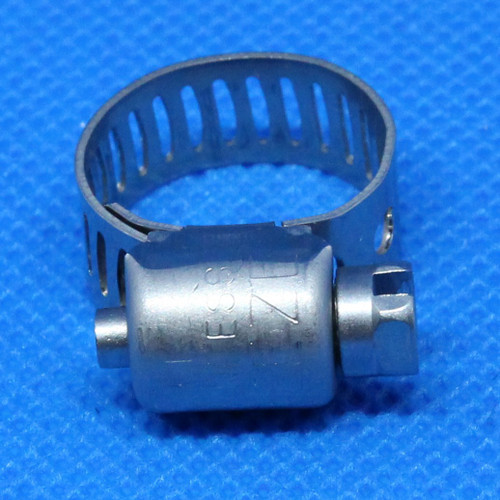

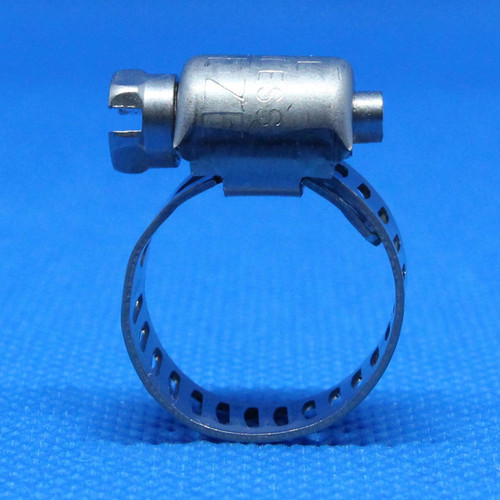

A lightweight, streamlined hose clamp generally used in small-diameter applications, such as air and fuel lines.
- High sealing pressure with only 10 to 15 in/lbs of installation torque
- 5/16" Band with Arcial Perforations
- Three-Piece Construction
- SAE Standard J1508 Type M
- 300-Series SS band & housing
- 1/4" 410 Stainless Steel Hex Screw
- SAE:
- 24
- Brand PN:
- 3624
- Global PN:
- 0306 0103 044
- Inches min:
- 1 7/16
- Inches Max:
- 2
- mm Min:
- 37
- mm Max:
- 51
- Screw Type:
- 1/4" 410 Stainless Steel Hex Screw
- Screw Material:
- 410 SS
- Bandwidth:
- 5/16"
- Band Material:
- 300 SS
- Torque Range:
- 10-15 in-lbs
