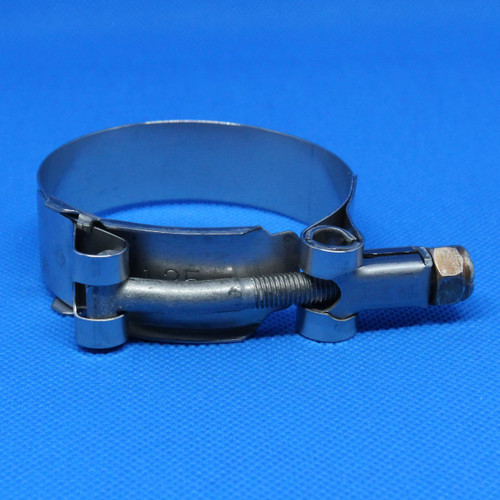

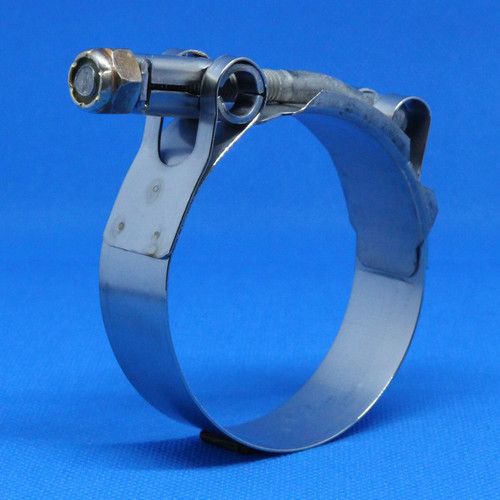

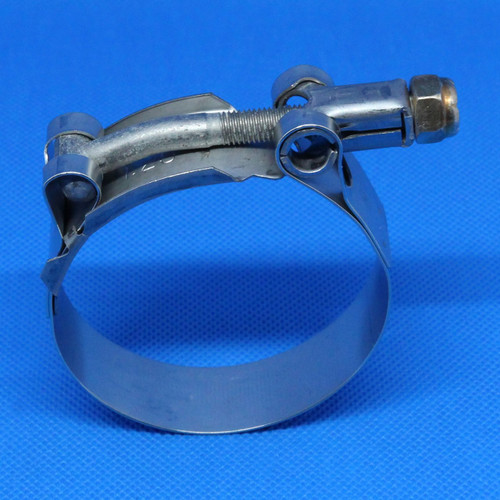

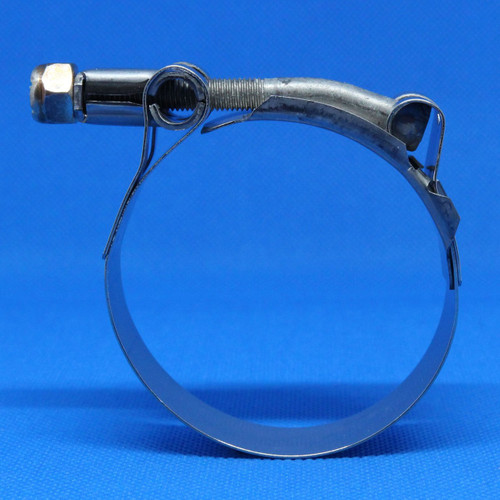

A stainless steel clamp performance-engineered for long-term durability and a wide variety of applications.
- Ideal for sealing liquid or air connections in hoses
- Floating bridge – virtually eliminates possibility of damaging hose upon installation
- SAE Standard J1508 Type TB
- 300-Series SS 3/4" Band
- 1/4" – 28 Plated bolt & nylon insert locknut
- SAE:
- 172
- Brand PN:
- TB 625
- Global PN:
- 0363 0017 163
- Inches min:
- 6 1/4
- Inches Max:
- 6 9/16
- mm Min:
- 159
- mm Max:
- 167
- Screw Type:
- 1/4"-28 Plated Bolt
- Screw Material:
- Plated
- Bandwidth:
- 3/4"
- Band Material:
- 300 SS
- Torque Range:
- 60 in-lbs
