TB - TB 325

Call for pricing 908-298-8600

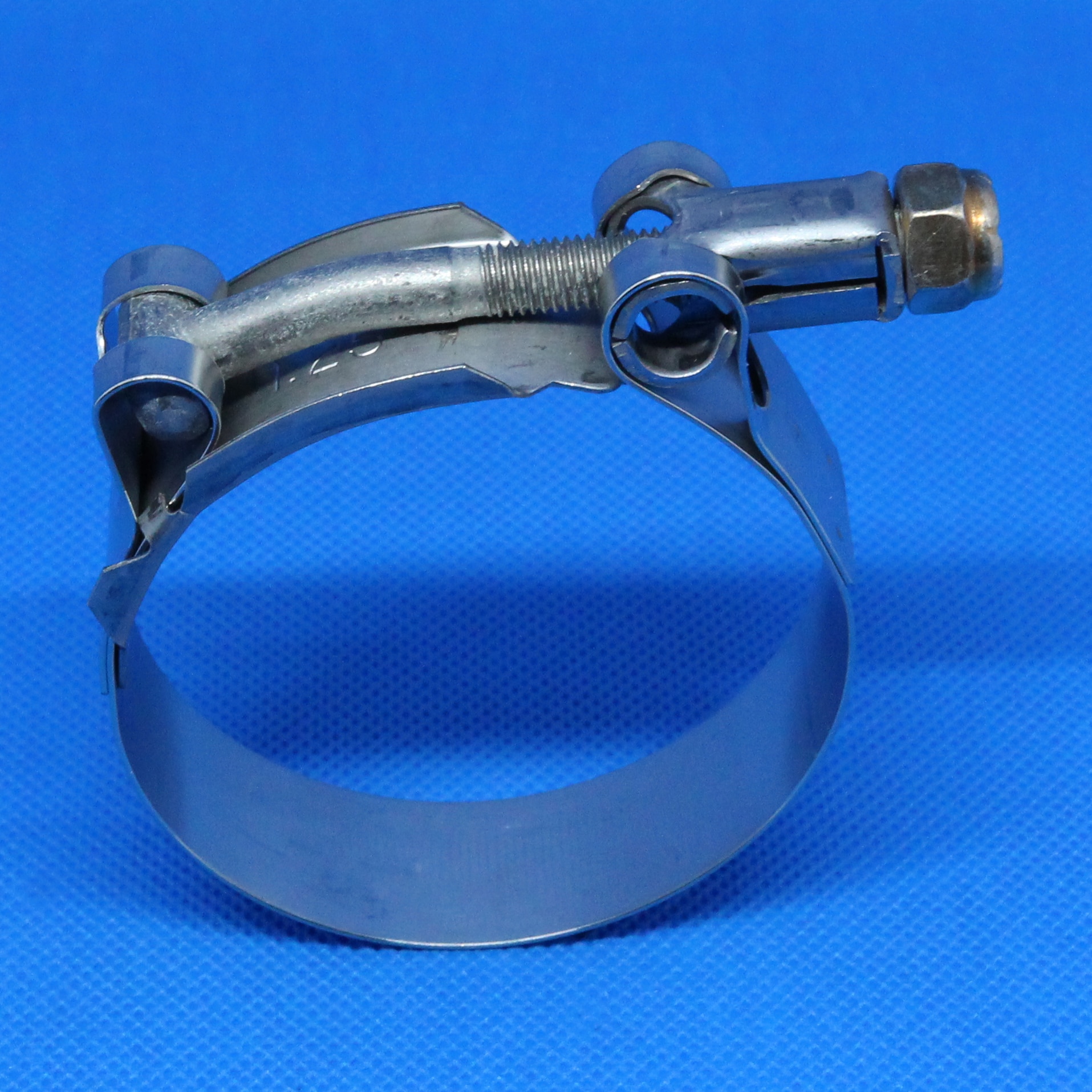

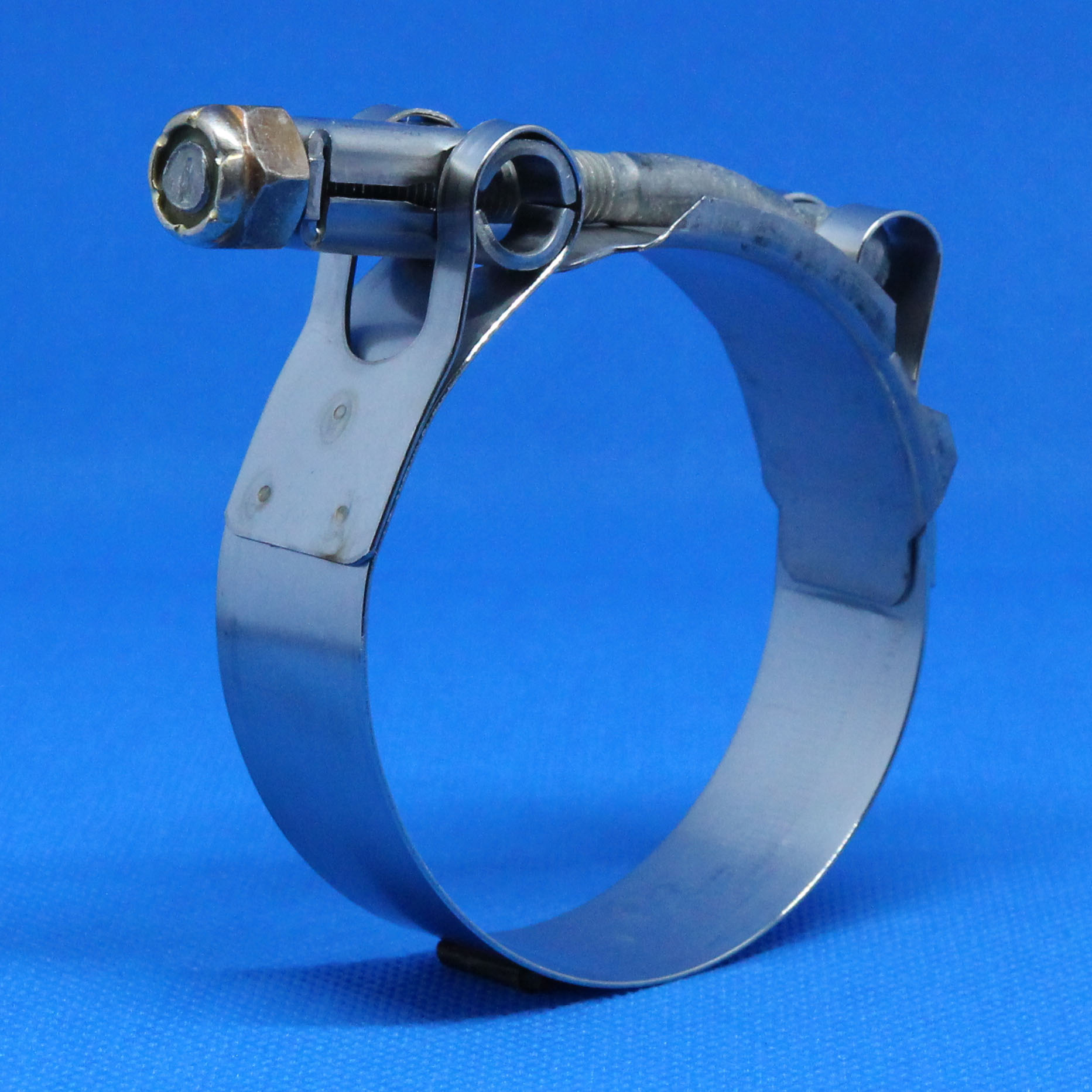

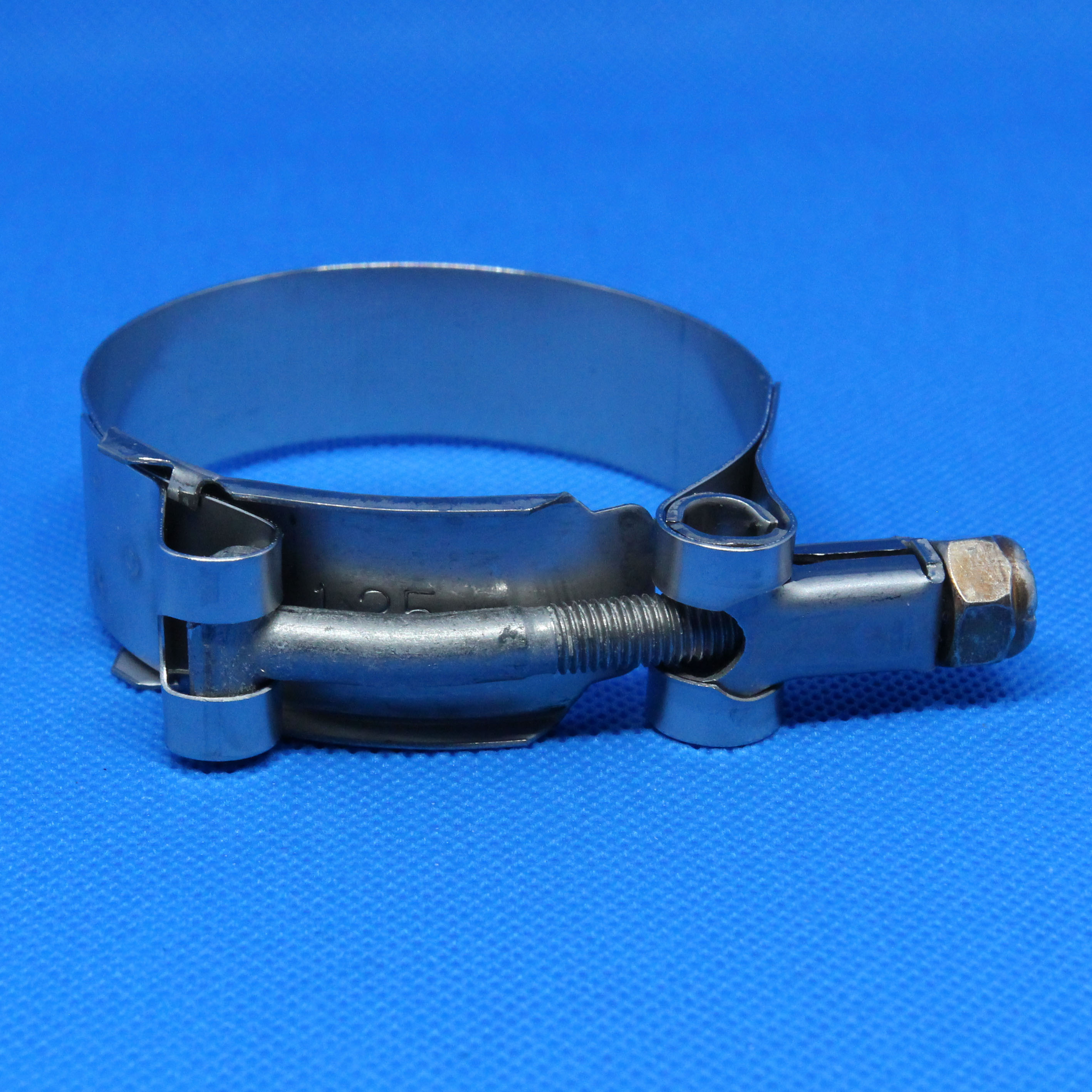

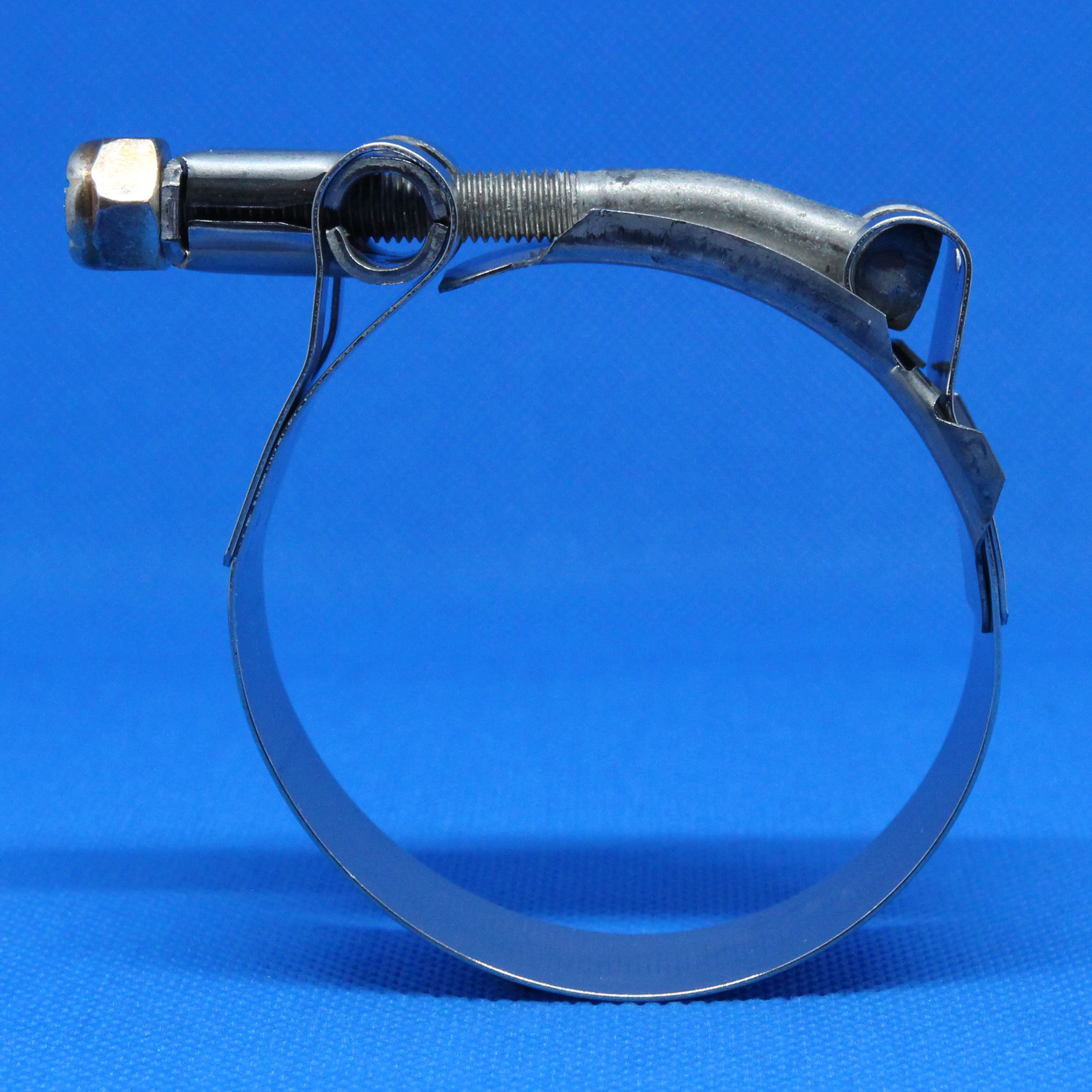

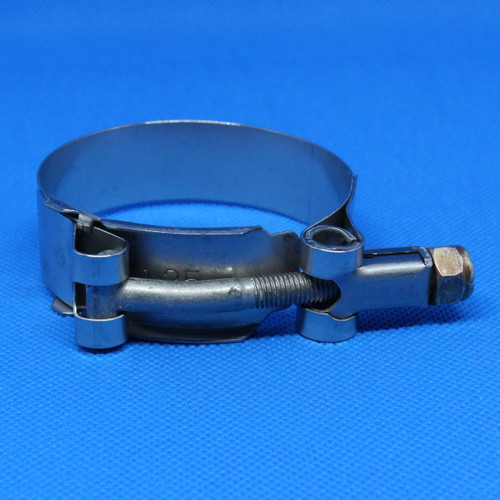

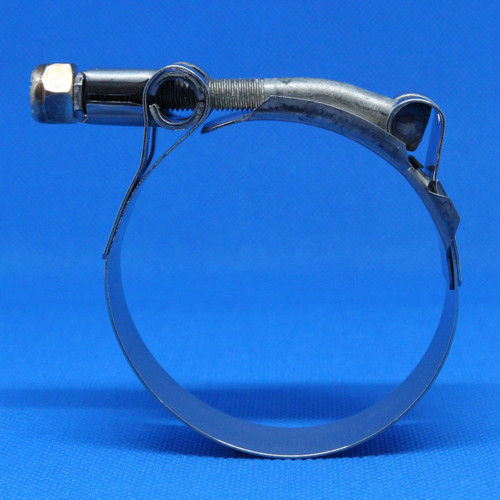

A stainless steel clamp performance-engineered for long-term durability and a wide variety of applications.

  • Ideal for sealing liquid or air connections in hoses
  • Floating bridge – virtually eliminates possibility of damaging hose upon installation
  • SAE Standard J1508 Type TB
  • 300-Series SS 3/4" Band
  • 1/4" – 28 Plated bolt & nylon insert locknut
SAE:
76
Brand PN:
TB 325
Global PN:
0363 0017 087
Inches min:
3 1/4
Inches Max:
3 9/16
mm Min:
83
mm Max:
90
Screw Type:
1/4"-28 Plated Bolt
Screw Material:
Plated
Bandwidth:
3/4"
Band Material:
300 SS
Torque Range:
60 in-lbs
