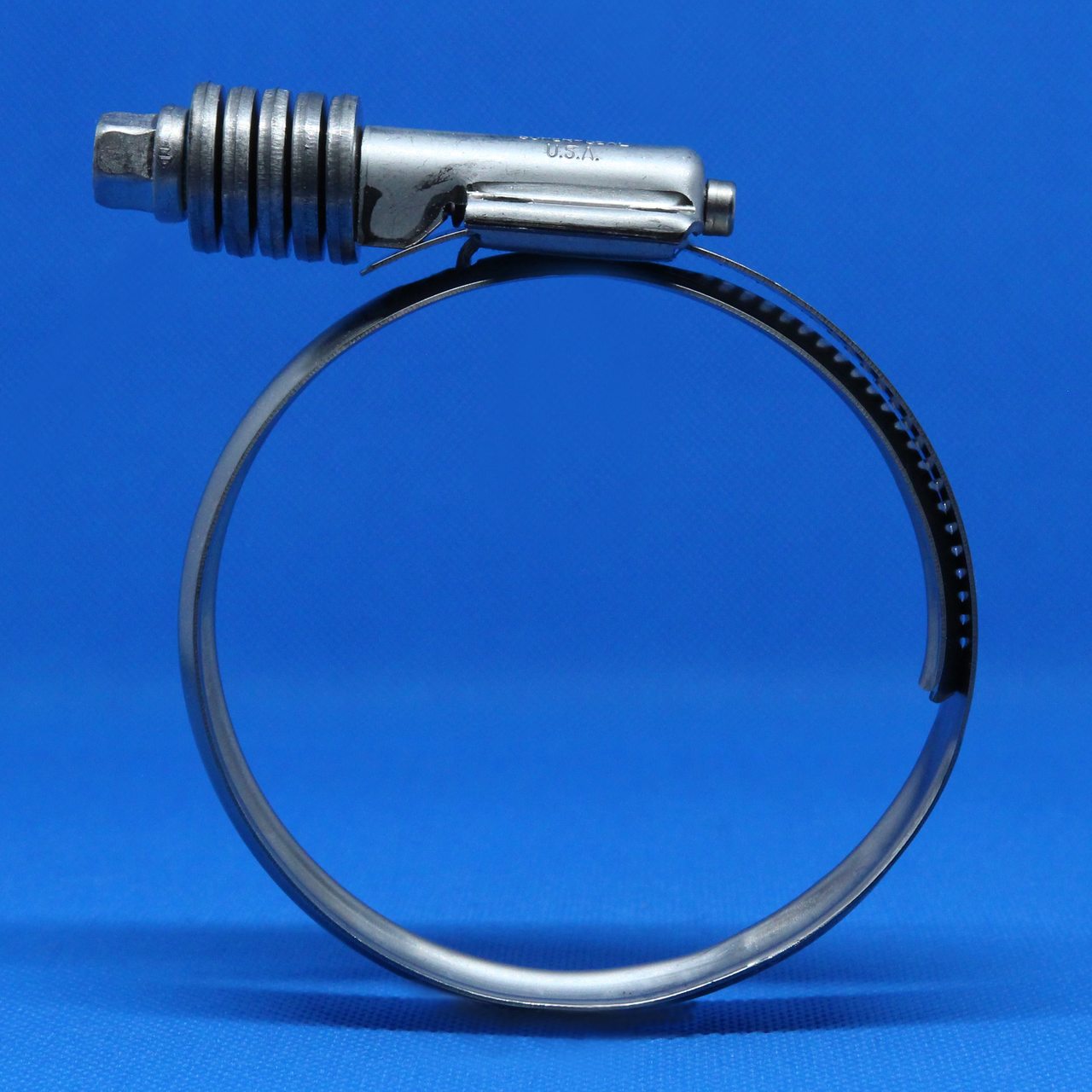

A breakthrough constant tension clamp with dynamic compensation and ultra-secure sealing for fluid-handling applications, utilizing EPDM or silicone hose.
- Patented dual-bead design
- Unique band design acts as its own spring
- Recommended Torque 90+/-5 in.-lbs
- 304 stainless steel Quadralock housing
- 410 Stainless Steel Hex Screw/Ten Belleville Washers
- Global PN:
- 0635 0005 038
- Inches min:
- 1.42
- Inches Max:
- 1.65
- mm Min:
- 36
- mm Max:
- 42
- Screw Type:
- 410 Stainless Steel Hex Screw/Ten Belleville Washers
- Screw Material:
- 410 SS
- Bandwidth:
- 9/16"
- Band Material:
- 300 SS
- Torque Range:
- 90+/-5 in. -lbs.
