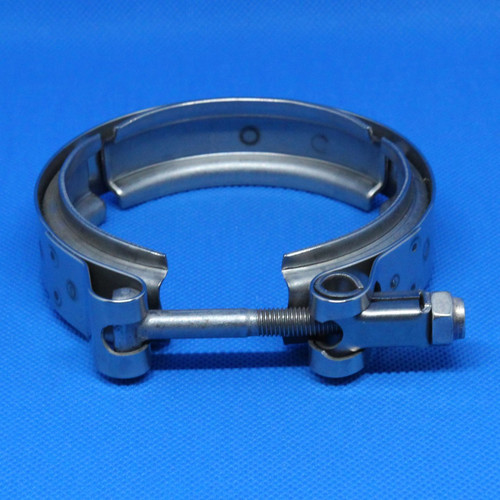

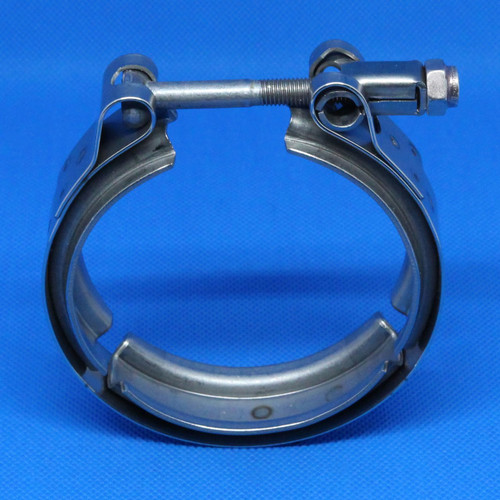

V-Band clamps provide fast, secure high-strength coupling to connect flanged joints.
- 40° Insert angle – Other insert angles also available
- Welded band construction with rotating angle
- 5/8" 300-Series SS Band
- 300-Series SS V- Insert
- 400-Series SS Bolt & Locknut
- Brand PN:
- VH10318A03-3XE B
- Global PN:
- 0373 0002 081
- Screw Type:
- 400-Series SS Bolt
- Screw Material:
- 400 SS
- Bandwidth:
- 5/8"
- Band Material:
- 300 SS
- Nominal Diameter (0) Inches:
- 3.18
- Nominal Diameter (0) mm:
- 80.8
- Insert Thickness (A) Inches:
- 0.05
- Insert Thickness (A) mm:
- 1.27
- Insert Apex Width (B) Inches:
- 0.4
- Insert Apex Width (B) mm:
- 10.16
- Insert Depth (C) Inches:
- 0.281
- Insert Depth (C) mm:
- 7.14
- Band Thickness (D) inches:
- 0.028
- Band Thickness (D) mm:
- 0.71
- Band Width (E) Inches:
- 0.62
- Band Width (E) mm:
- 15.75
