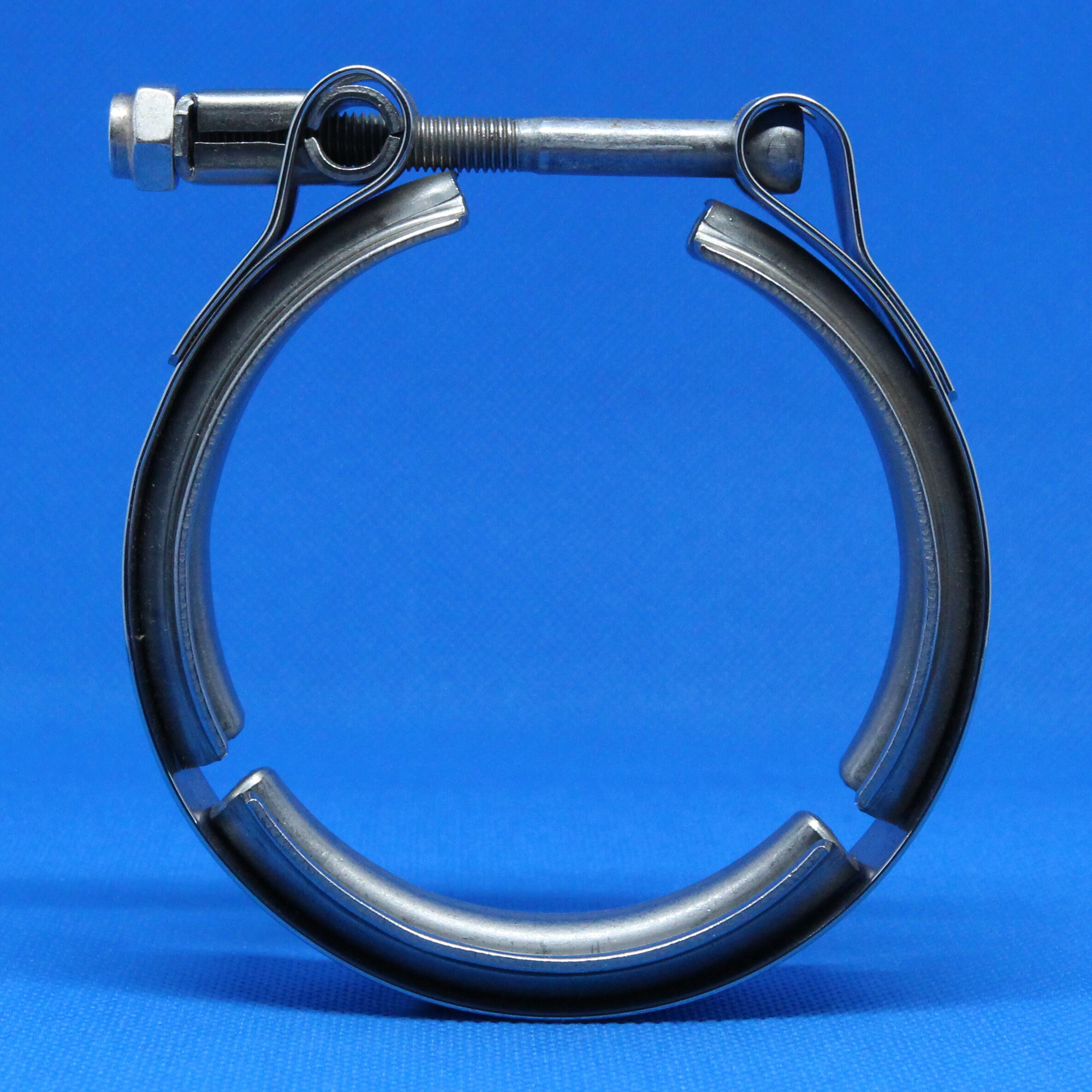

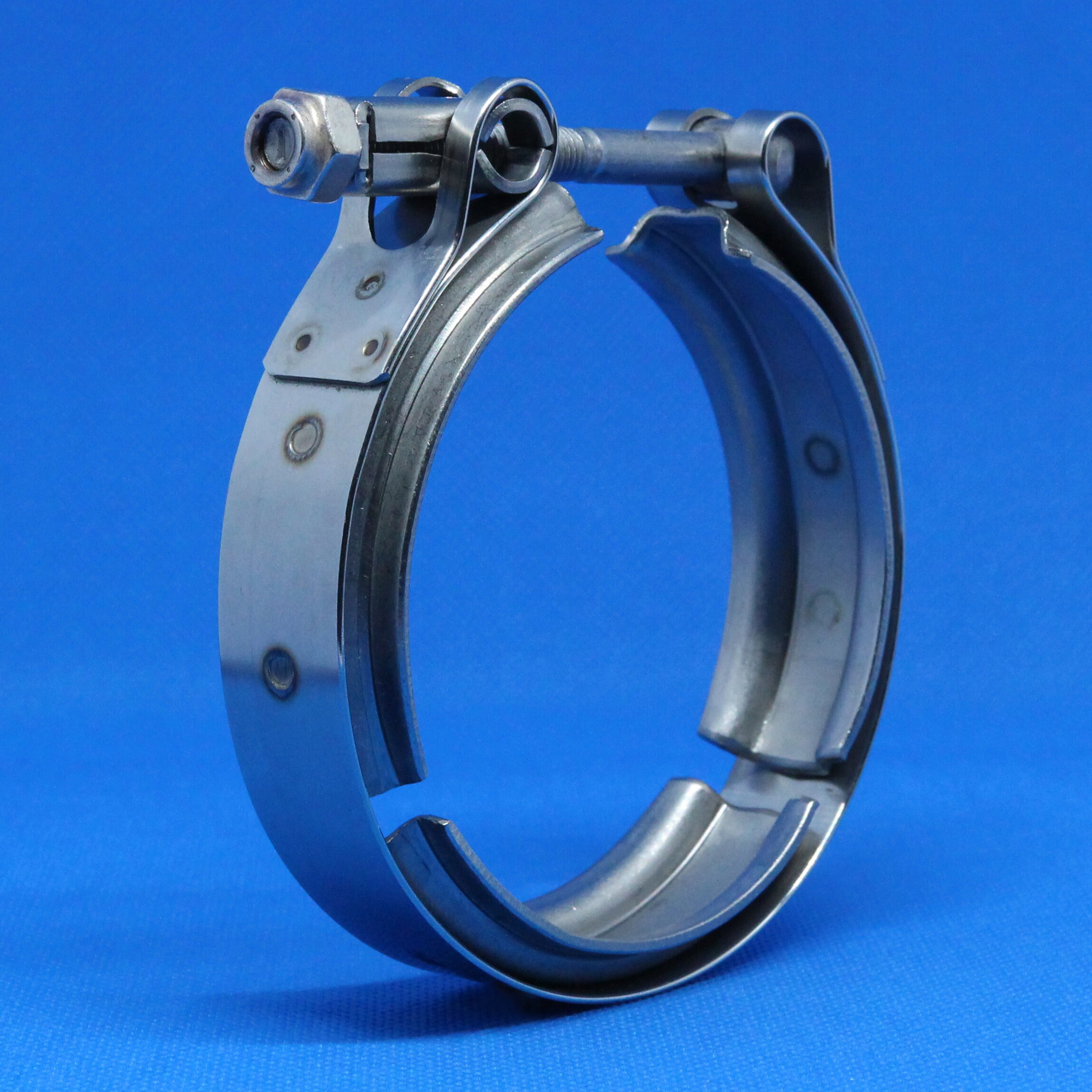

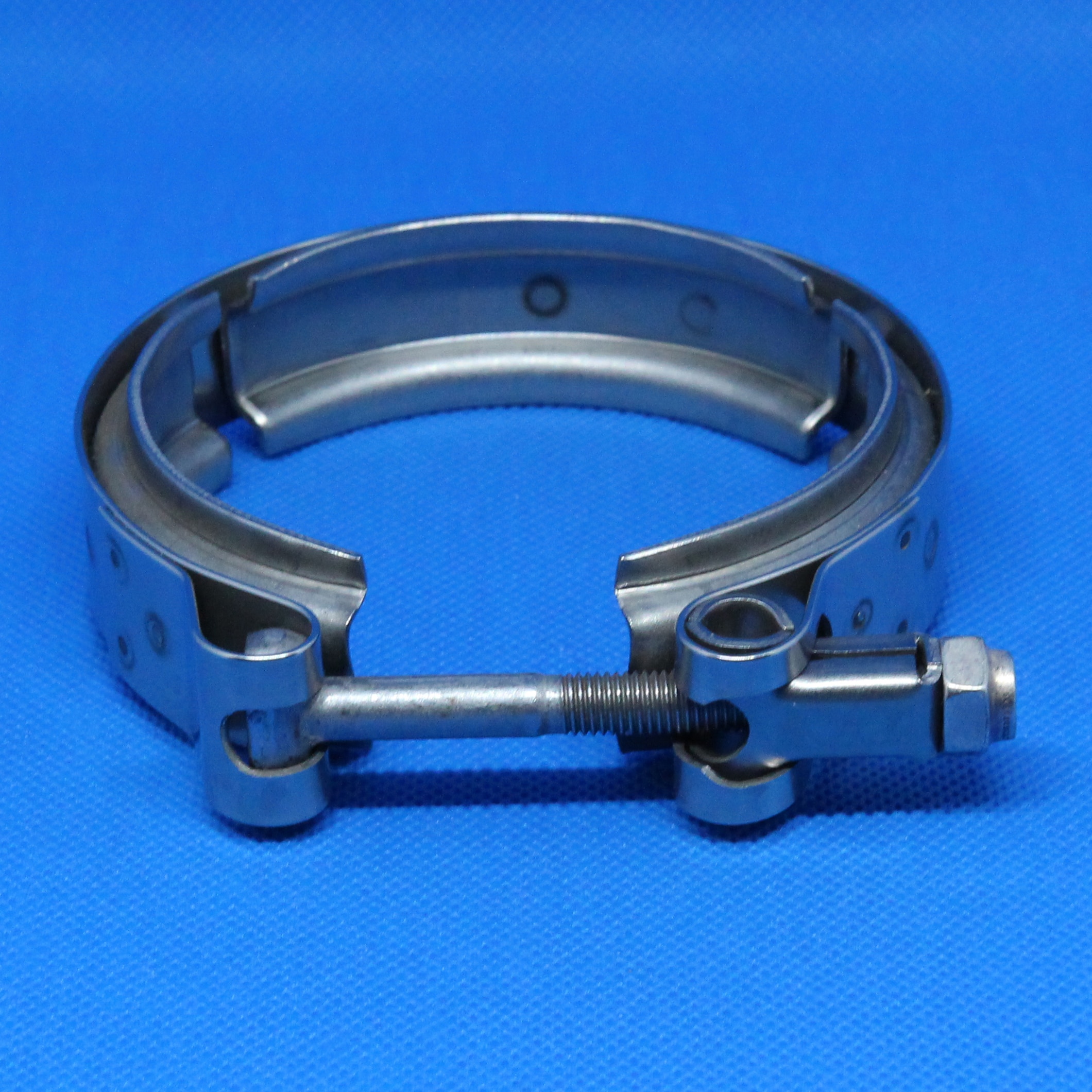

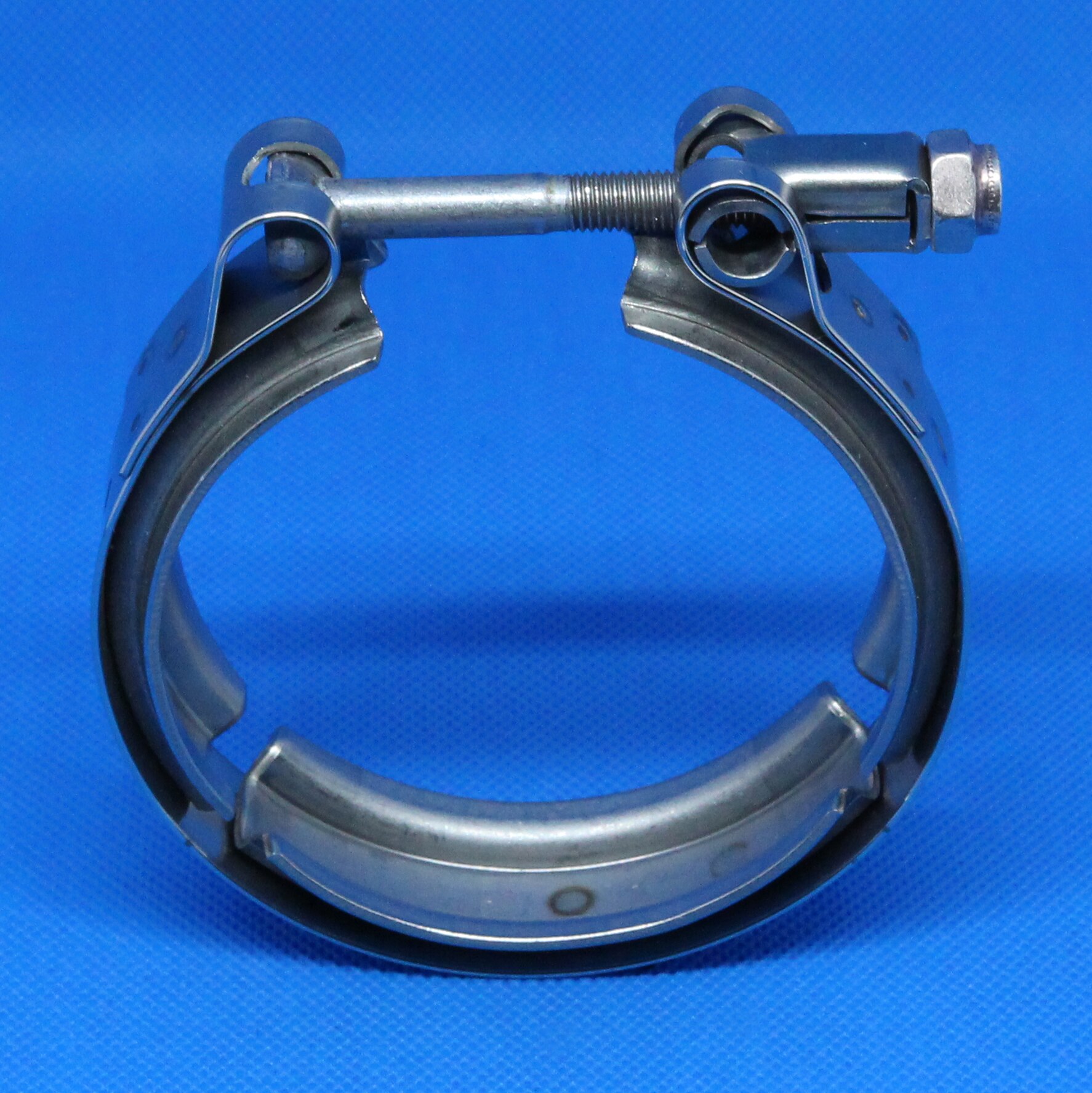

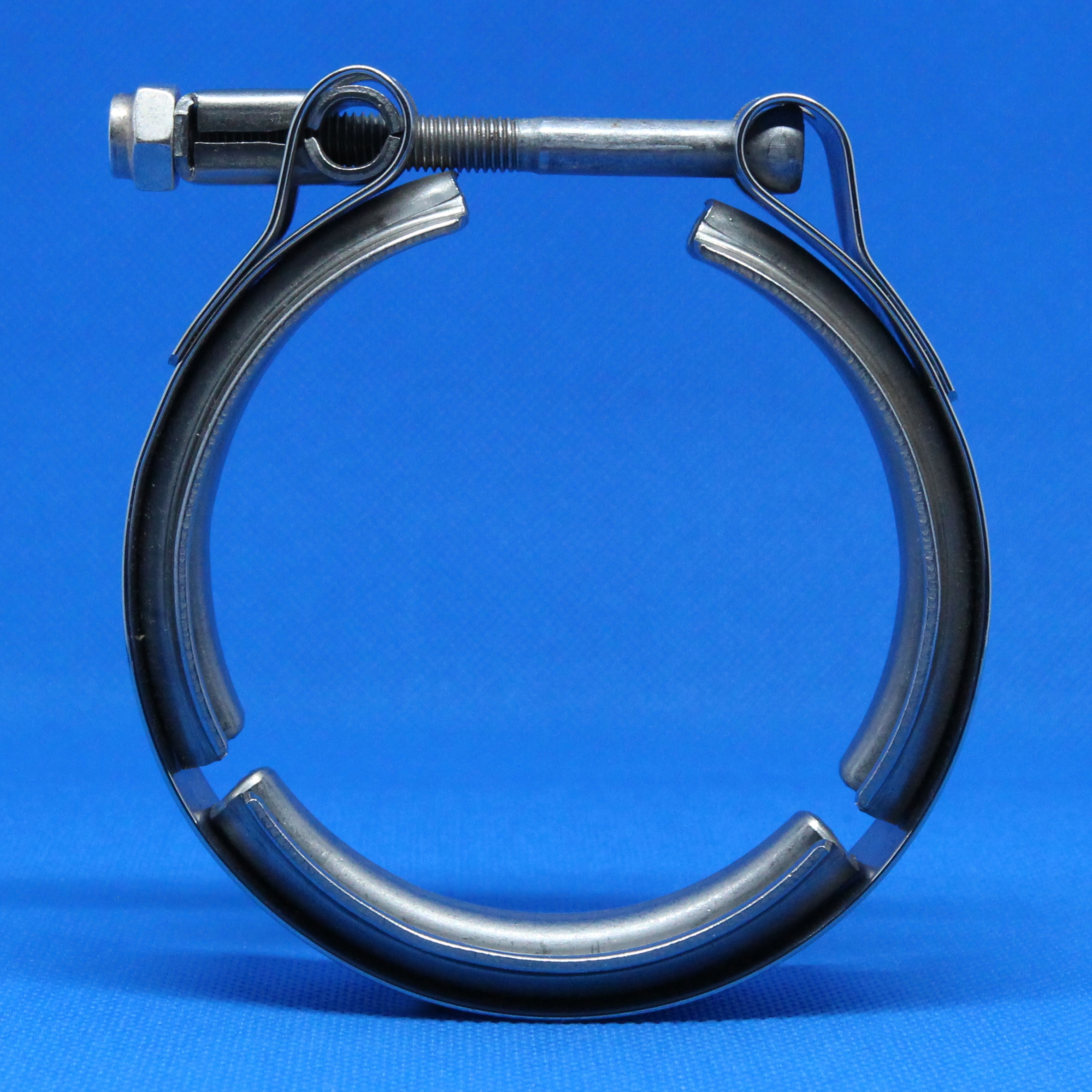

Clamps that can develop high axial clamping force with high burst pressure capability in diesel engine exhaust and turbochargers.
- Brand PN:
- 10770
- Global PN:
- 0373 0105 110
- Bandwidth:
- Multiple Band Widths
- Nominal Diameter Inches:
- 4.33
- Nominal Diameter mm:
- 110
- # Of Inserts:
- 3
- Installation Torque:
- 50 in lb
- Insert Angle (S):
- 40
- Insert Thickness (A) Inches:
- 0.04
- Insert Thickness (A) mm:
- 1.02
- Insert Apex Width (B) Inches:
- 0.207
- Insert Apex Width (B) mm:
- 5.26
- Insert Depth (C) Inches:
- 0.281
- Insert Depth (C) mm:
- 7.14
- Band Thickness (D) Inches:
- 0.025
- Band Thickness (D) mm:
- 0.64
- Band Width (E) Inches:
- 0.75
- Band Width (E) mm:
- 19.05
