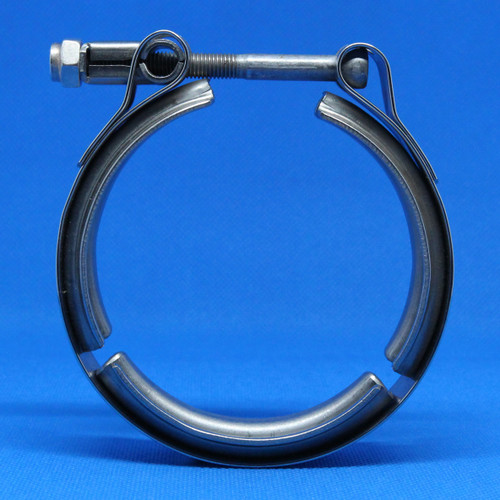

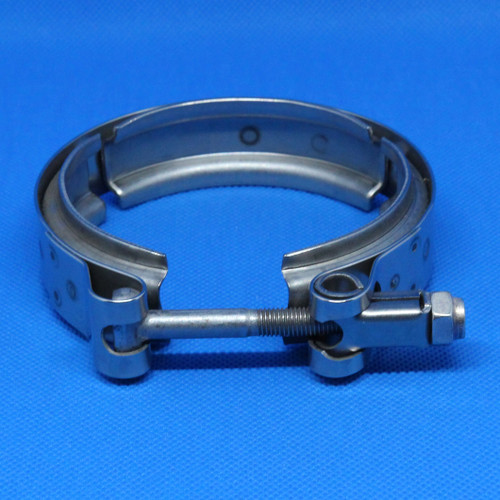

Clamps that can develop high axial clamping force with high burst pressure capability in diesel engine exhaust and turbochargers.
- Brand PN:
- 10601
- Global PN:
- 0373 0107 106
- Bandwidth:
- Multiple Band Widths
- Nominal Diameter Inches:
- 4.16
- Nominal Diameter mm:
- 105.7
- # Of Inserts:
- 3
- Installation Torque:
- 50 in lb
- Insert Angle (S):
- 40
- Insert Thickness (A) Inches:
- 0.06
- Insert Thickness (A) mm:
- 1.52
- Insert Apex Width (B) Inches:
- 0.309
- Insert Apex Width (B) mm:
- 7.85
- Insert Depth (C) Inches:
- 0.236
- Insert Depth (C) mm:
- 5.99
- Band Thickness (D) Inches:
- 0.04
- Band Thickness (D) mm:
- 1.02
- Band Width (E) Inches:
- 0.75
- Band Width (E) mm:
- 19.05
