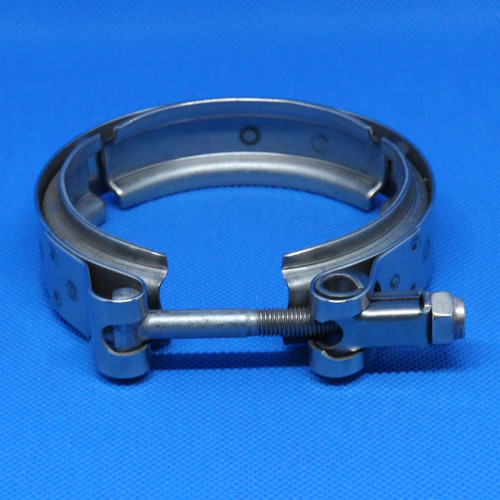

Clamps that can develop high axial clamping force with high burst pressure capability in diesel engine exhaust and turbochargers.
- Brand PN:
- 010499-006
- Global PN:
- 0373 0102 068
- Bandwidth:
- Multiple Band Widths
- Nominal Diameter Inches:
- 2.69
- Nominal Diameter mm:
- 68.3
- # Of Inserts:
- 3
- Installation Torque:
- 50 in lb
- Insert Angle (S):
- 40
- Insert Thickness (A) Inches:
- 0.05
- Insert Thickness (A) mm:
- 1.27
- Insert Apex Width (B) Inches:
- 0.239
- Insert Apex Width (B) mm:
- 6.07
- Insert Depth (C) Inches:
- 0.19
- Insert Depth (C) mm:
- 4.83
- Band Thickness (D) Inches:
- 0.04
- Band Thickness (D) mm:
- 1.02
- Band Width (E) Inches:
- 0.75
- Band Width (E) mm:
- 19.05
