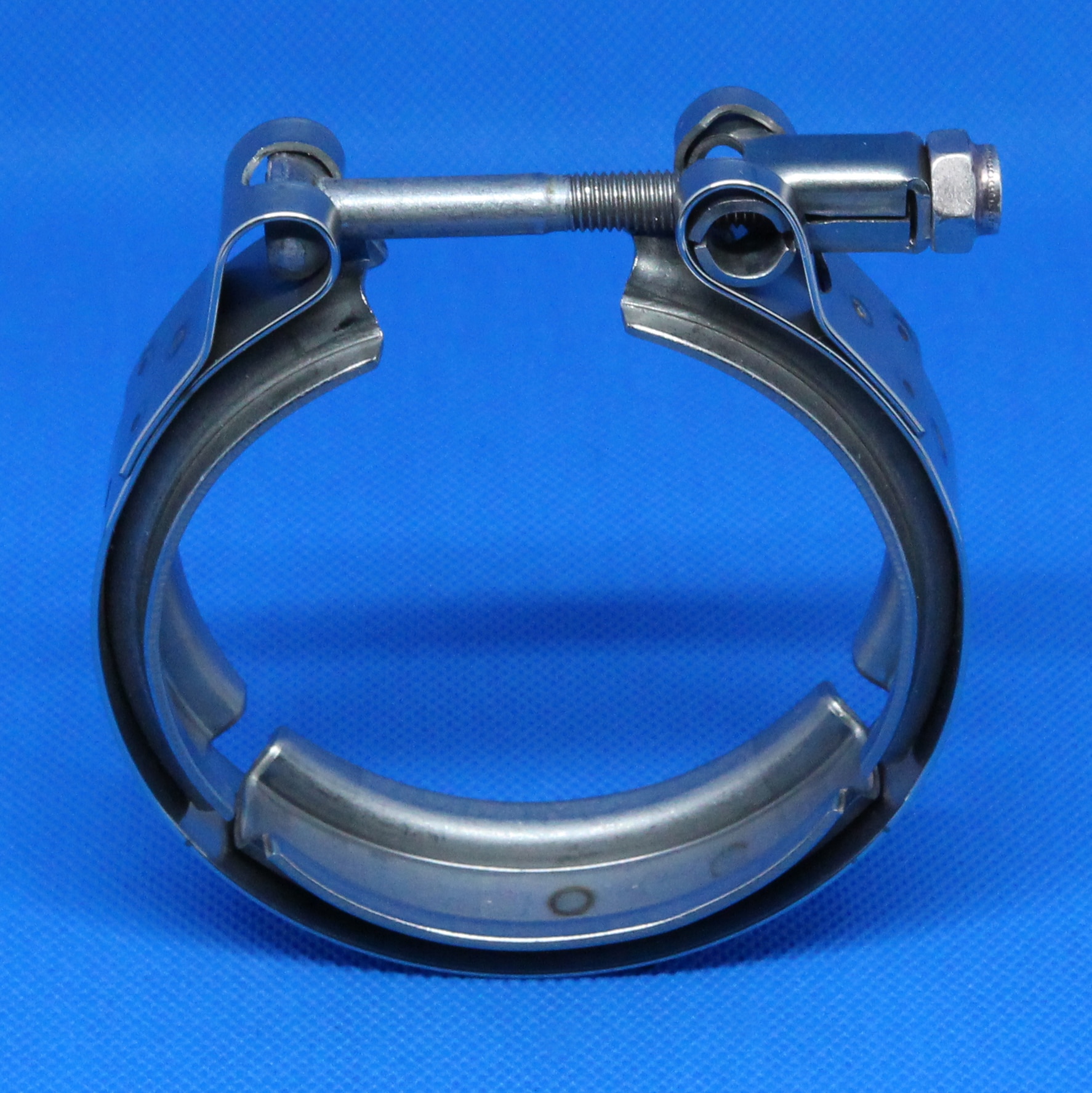

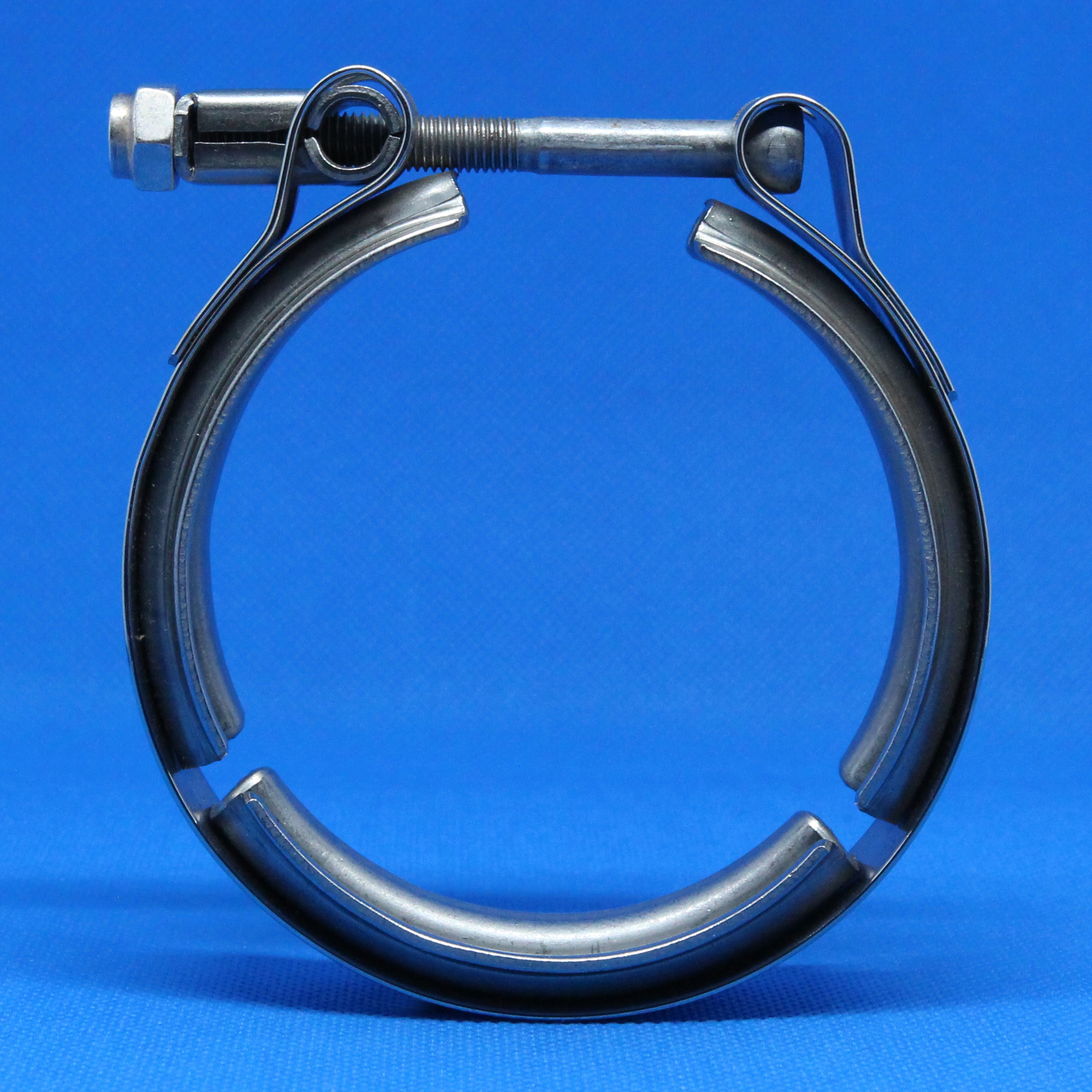

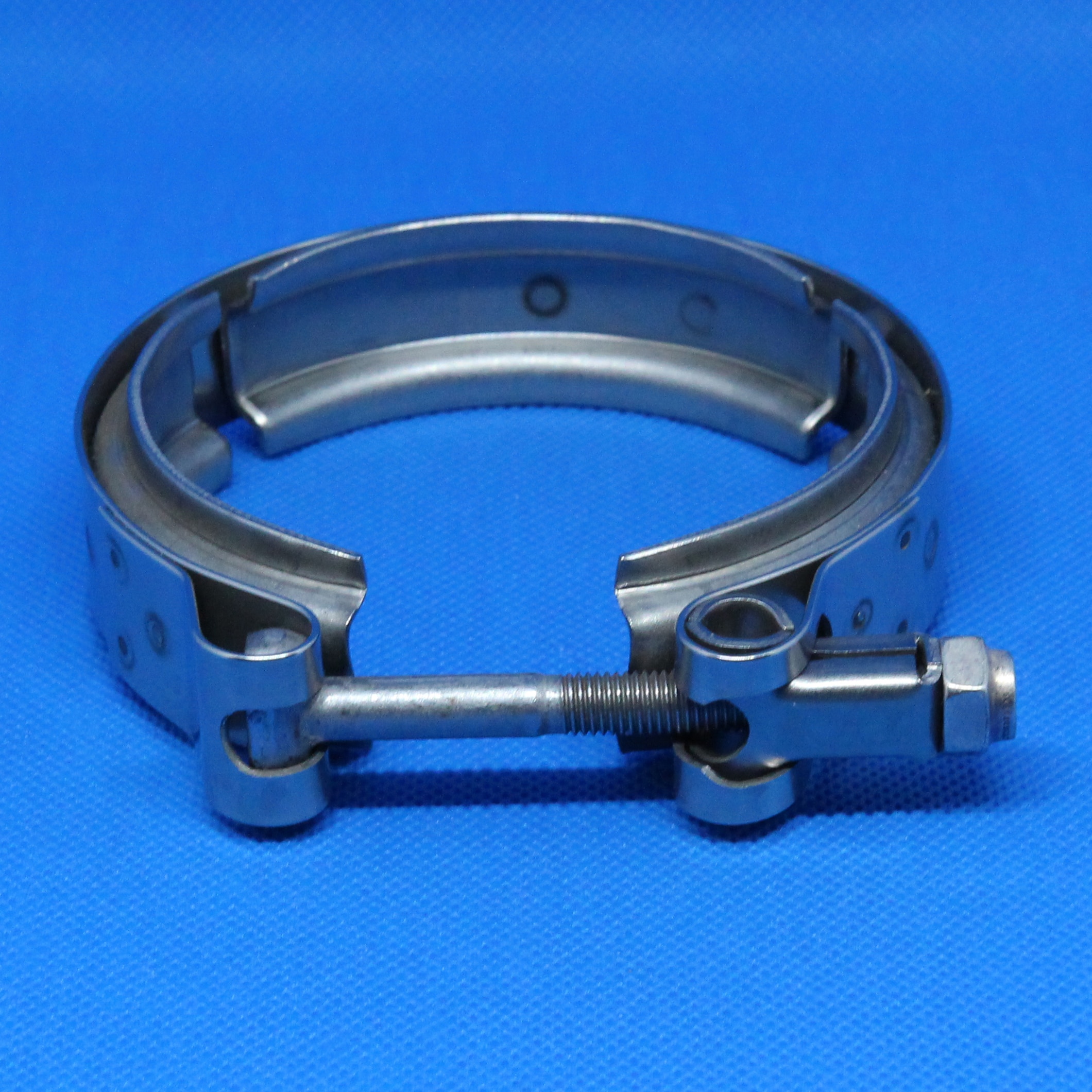

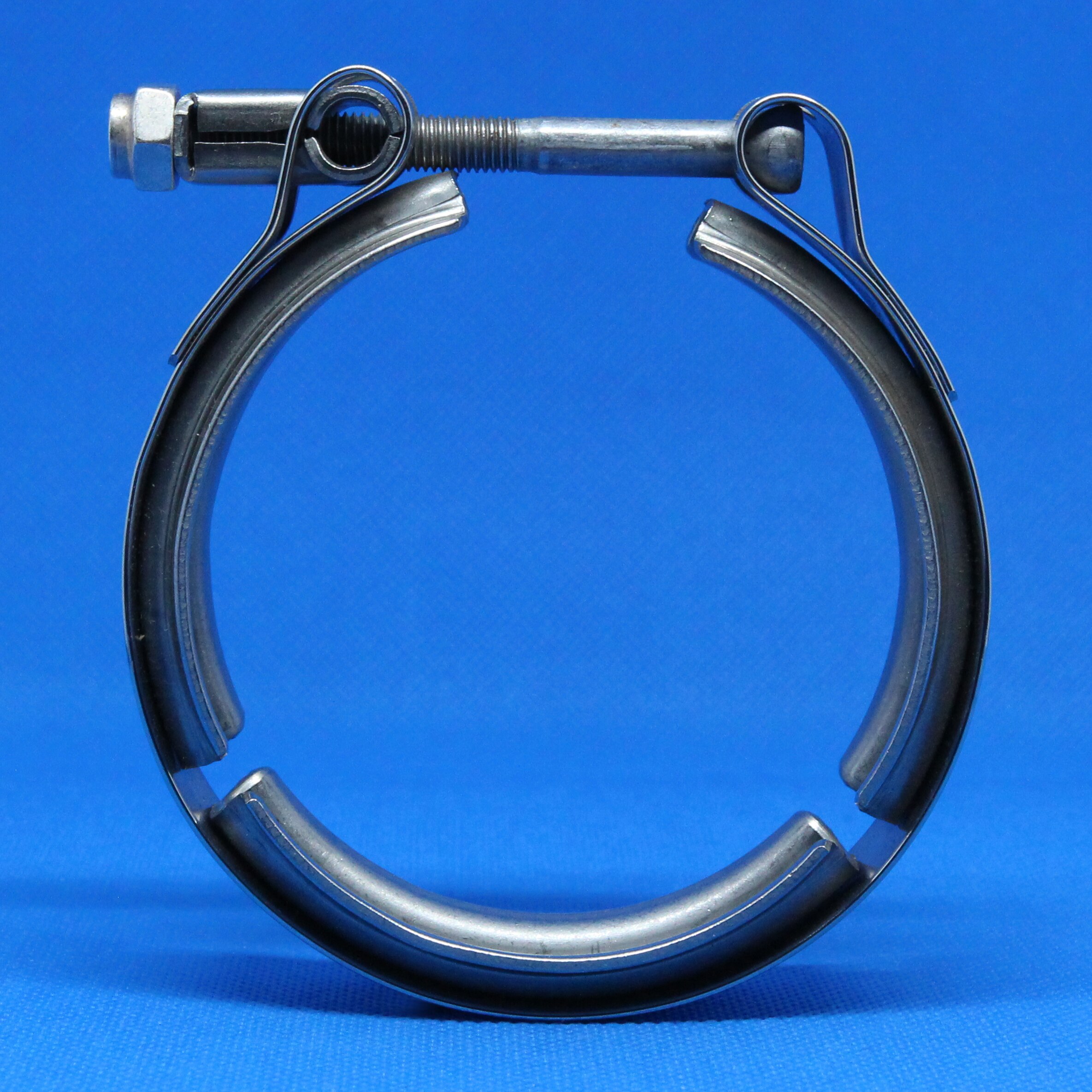

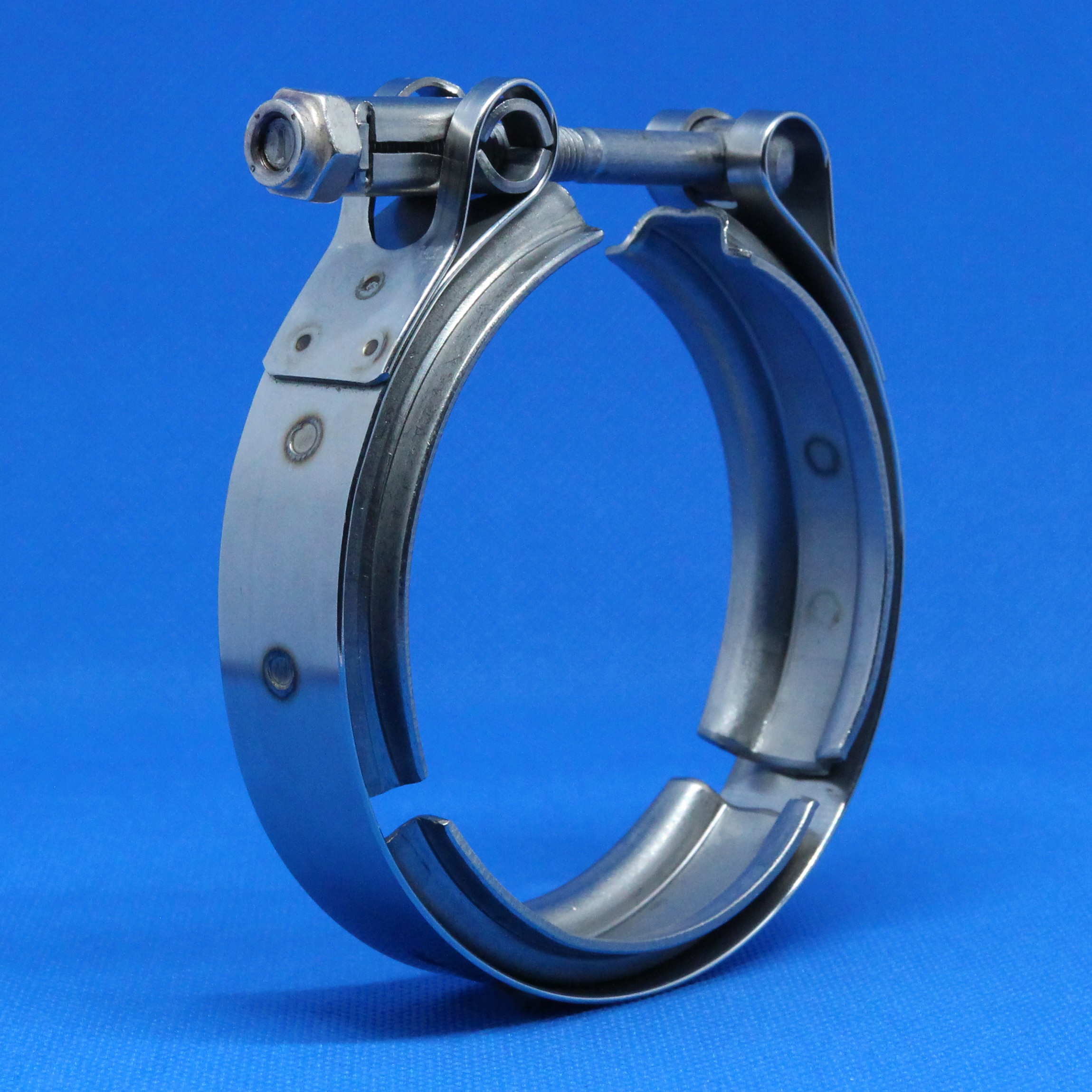

Clamps that can develop high axial clamping force with high burst pressure capability in diesel engine exhaust and turbochargers.
- Brand PN:
- 100279-007
- Global PN:
- 0373 0103 365
- Bandwidth:
- Multiple Band Widths
- Nominal Diameter Inches:
- 14.38
- Nominal Diameter mm:
- 365.3
- # Of Inserts:
- 4
- Installation Torque:
- 100 in lb
- Insert Angle (S):
- 40
- Insert Thickness (A) Inches:
- 0.077
- Insert Thickness (A) mm:
- 1.96
- Insert Apex Width (B) Inches:
- 0.104
- Insert Apex Width (B) mm:
- 2.63
- Insert Depth (C) Inches:
- 0.281
- Insert Depth (C) mm:
- 7.14
- Band Thickness (D) Inches:
- 0.062
- Band Thickness (D) mm:
- 1.57
- Band Width (E) Inches:
- 0.875
- Band Width (E) mm:
- 22.23
