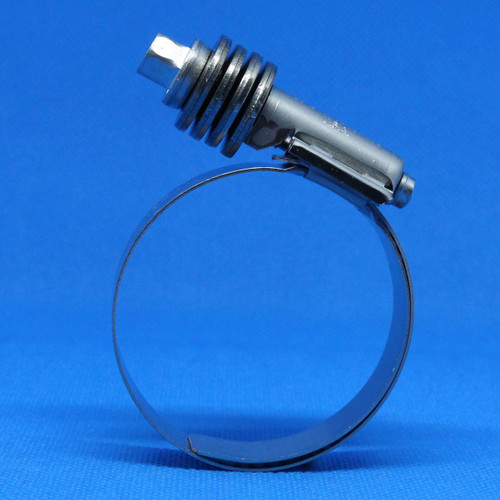

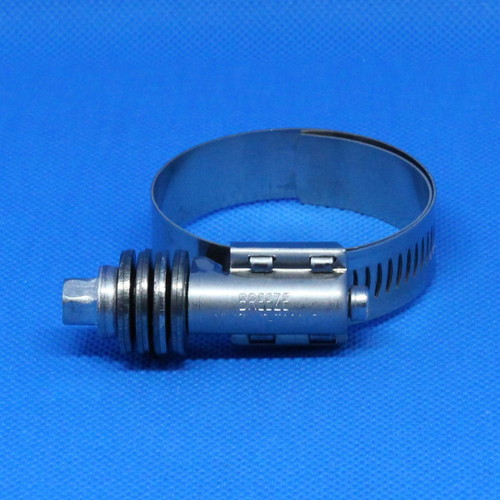

A worm-drive hose clamp that automatically increases or decreases diameter due to changes in temperature.
- Custom designed stainless steel Belleville washer
- Inner liner which protects all types of hoses from damage
- Increased sealing reliability across a wide temperature range
- SAE Standard J1508 Type SLF & SLHD
- Eight Stainless Steel Belleville Washers
- 300-Series SS 9/16" Band
- 5/16" 410 Stainless Steel Hex Screw
- SAE:
- 28
- Brand PN:
- CT 9428 B
- Global PN:
- 0362 0302 049
- Inches min:
- 1 5/16
- Inches Max:
- 2 1/4
- mm Min:
- 33
- mm Max:
- 57
- Screw Type:
- 5/16" 410 Stainless Steel Hex Screw
- Screw Material:
- 410 SS
- Bandwidth:
- 9/16"
- Band Material:
- 300 SS
- Torque Range:
- 30-45 in-lbs
