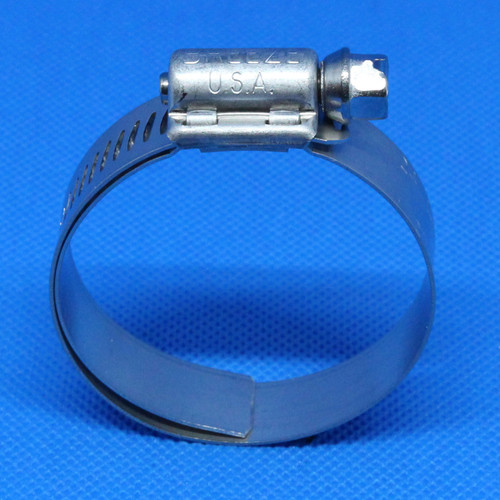

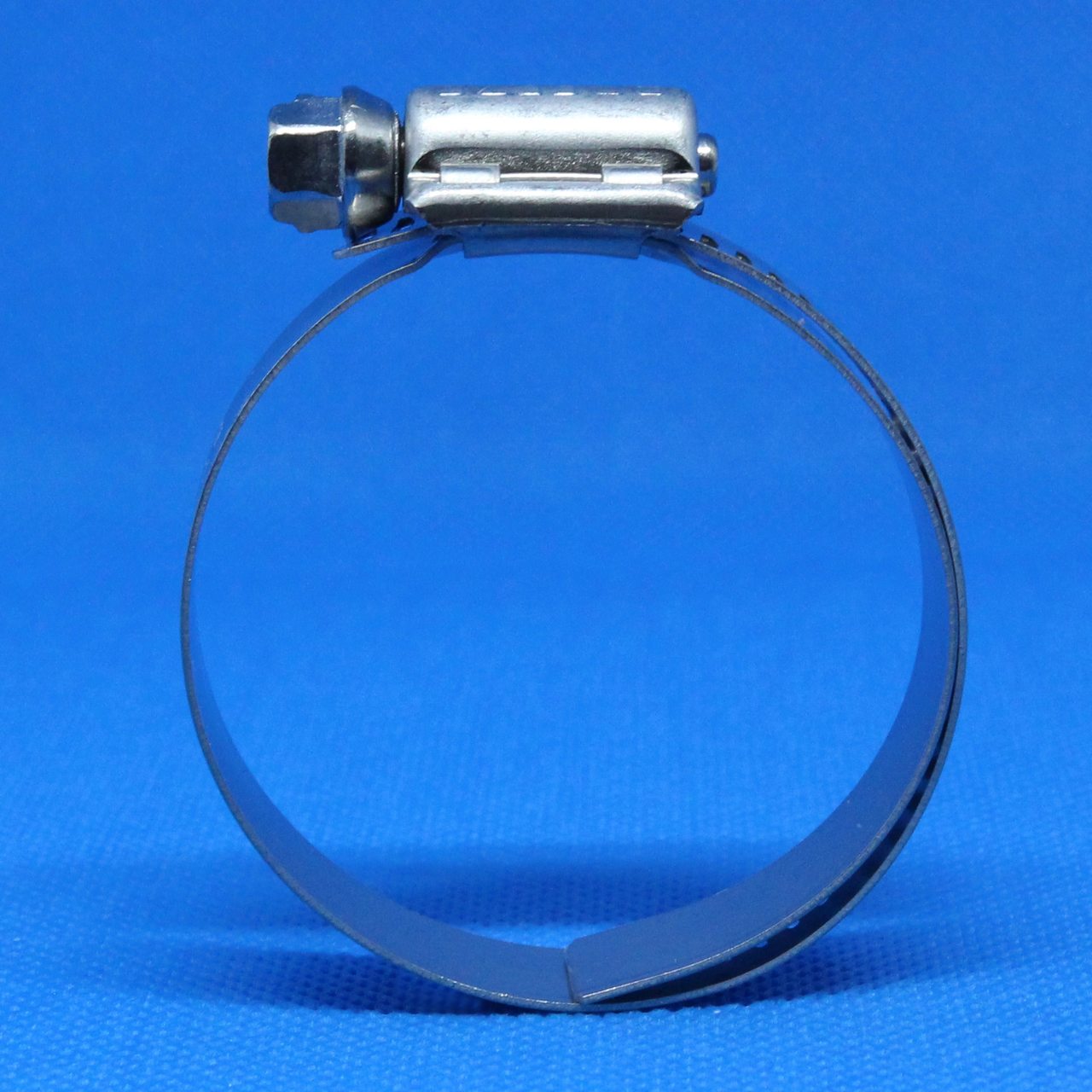

The original perforated stainless steel worm-drive clamp for aircraft and industrial applications.
- 300-Series SS 9/16" Band with Arcial Perforations
- Quadra-Lock Construction
- Per SAE Standard J1508 Type F
- 300-Series SS Two-Piece Housing
- 5/16" 300-Series SS Hex Screw
- SAE:
- 6
- Brand PN:
- 300 06 H
- Global PN:
- 0360 0030 016
- Inches min:
- 7/16
- Inches Max:
- 25/32
- mm Min:
- 11
- mm Max:
- 20
- Screw Type:
- 5/16" 300-Series SS Hex Screw
- Screw Material:
- 300 SS
- Bandwidth:
- 9/16"
- Band Material:
- 300 SS
- Torque Range:
- 30-45 in-lbs
