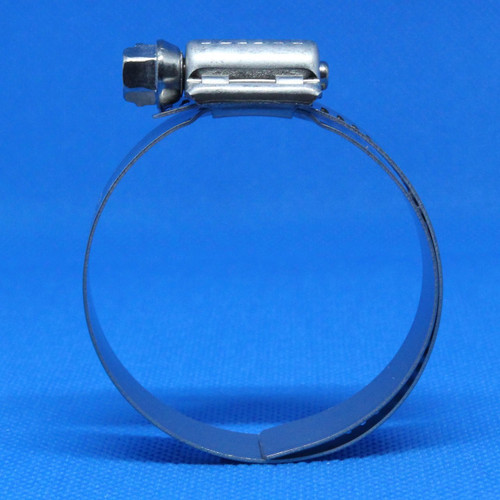

The original perforated stainless steel worm-drive clamp for aircraft and industrial applications.
- 300-Series SS 9/16" Band with Arcial Perforations
- Quadra-Lock Construction
- Per SAE Standard J1508 Type F
- 300-Series SS Two-Piece Housing
- 5/16" Plated Hex Screw
- SAE:
- 96
- Brand PN:
- 100 96 H
- Global PN:
- 0360 0000 129
- Inches min:
- 3 5/8
- Inches Max:
- 6 1/2
- mm Min:
- 92
- mm Max:
- 165
- Screw Type:
- 5/16" Plated Hex Screw
- Screw Material:
- Plated
- Bandwidth:
- 9/16"
- Band Material:
- 300 SS
- Torque Range:
- 25-37 in-lbs
